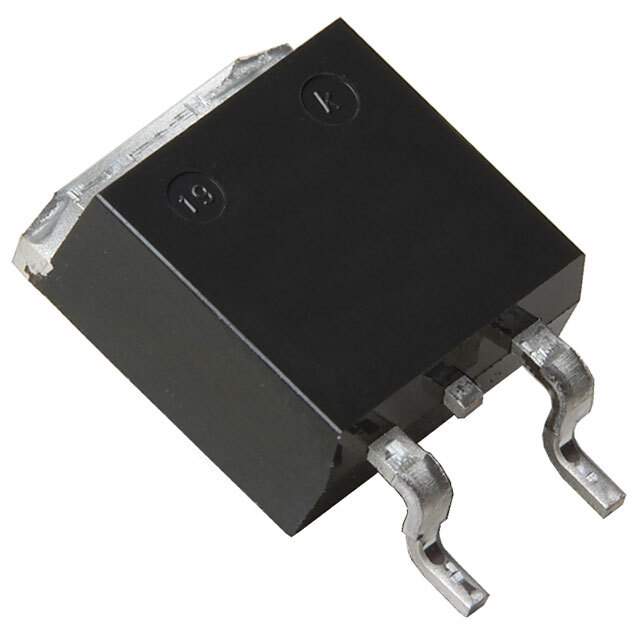

PHB101NQ04T

Part No PHB101NQ04T
Manufacturer NXP / Nexperia
Catalog Transistors - FETs, MOSFETs - RF
Description N-channel TrenchMOS  standard level FET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer NXP
Win Source Part Number 1237212-PHB101NQ04T
Manufacturer Homepage www.nxp.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHB101NQ04T CAD Model

Description

Introducing the PHB101NQ04T MOSFET from NXP Semiconductors

The PHB101NQ04T is a high-performance, N-channel TrenchMOS™ standard level Field-Effect Transistor (FET) designed by NXP Semiconductors, a leader in the industry. This MOSFET is engineered to deliver efficient power management and conversion for a wide range of applications. Its robust design and advanced technology make it an ideal choice for those seeking reliability and efficiency in their electronic designs.

Key Features

  • Low On-State Resistance: The PHB101NQ04T offers a very low on-state resistance (R<sub>DS(on)), which translates to reduced conduction losses and improved overall efficiency in high-power applications.
  • High-Speed Switching: With its fast switching capabilities, this MOSFET is suitable for high-frequency power converters and other applications that demand quick response times.
  • High Thermal Performance: The MOSFET is encapsulated in a robust package that enhances its thermal performance, ensuring stable operation even under high-temperature conditions.
  • Standard Level Drive: It is compatible with standard level gate drive voltages, making it easy to integrate into existing designs without the need for additional drive circuitry.

Applications

The versatility of the PHB101NQ04T MOSFET makes it suitable for a broad range of applications, including:

  • DC/DC converters
  • Switch Mode Power Supplies (SMPS)
  • Motor control systems
  • Automotive applications
  • Power management circuits

Technical Specifications

The device boasts an impressive set of technical specifications that ensure top-notch performance:

  • Drain-source voltage (V<sub>DS): 40V
  • Continuous drain current (I<sub>D): 75A
  • Power dissipation (P<sub>tot): 110W
  • Operating temperature range: -55°C to +175°C

The PHB101NQ04T MOSFET from NXP Semiconductors is a testament to the company's commitment to providing high-quality, reliable components for the electronics industry. Its exceptional performance and robustness make it a top choice for designers and engineers looking to enhance the efficiency and reliability of their power management systems.
