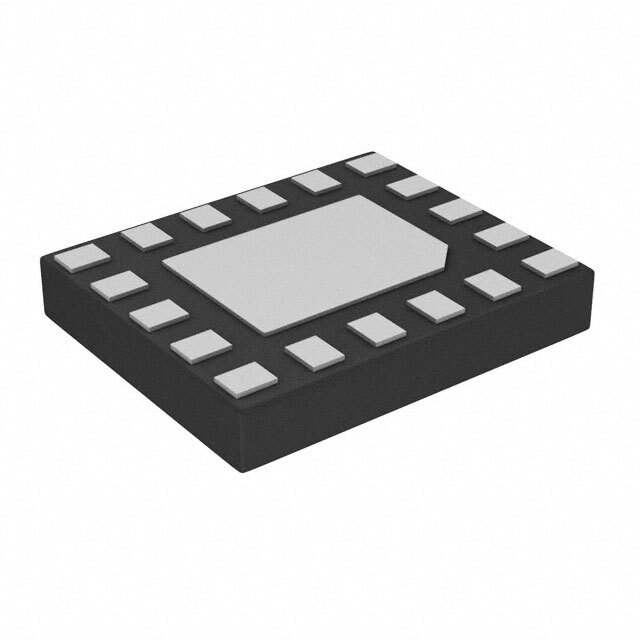

The PTN36043ABXY from NXP Semiconductors is a high-performance, versatile interface IC that provides a bridge between USB 3.2 Gen 1 signals and DisplayPort signals. This innovative component is designed to facilitate the development of high-speed, bidirectional communication channels between devices equipped with USB Type-C connectors and displays supporting DisplayPort technology.

Key Features

• USB 3.2 Gen 1 Support: The PTN36043ABXY is compatible with USB 3.2 Gen 1 standards, ensuring fast data transfer rates of up to 5 Gbps for efficient operation and data handling.
• DisplayPort Alt Mode: This IC supports DisplayPort Alternate Mode over USB Type-C, enabling the transmission of DisplayPort signals through a USB Type-C connector for seamless video and audio output.
• High-Resolution Video: It supports high-resolution video output, making it ideal for applications requiring the transmission of high-definition content to monitors, TVs, or projectors.
• Plug and Play: Designed for ease of use, the PTN36043ABXY requires no additional software or drivers, offering a plug-and-play experience for users.
• Low Power Consumption: With its low power consumption design, this IC is well-suited for portable and battery-powered devices where power efficiency is critical.
• Compact Form Factor: The small package size of the PTN36043ABXY allows for integration into space-constrained applications, making it an excellent choice for compact and mobile devices.

Applications

The PTN36043ABXY is ideal for a wide range of applications, including but not limited to:

• Docking stations
• USB Type-C to DisplayPort cables
• Monitors with USB Type-C connectivity
• Portable devices with video output capabilities
• Smartphones, tablets, and laptops with external display requirements

In conclusion, the PTN36043ABXY from NXP is a cutting-edge solution designed to bridge USB and DisplayPort technologies, offering a high level of integration, performance, and convenience for manufacturers and end-users alike. Its robust feature set and support for the latest standards make it an indispensable component for modern multimedia and connectivity applications.
