Overview of NXP's SPC5607BK0MLQ6 Microcontroller

The SPC5607BK0MLQ6 is a powerful and versatile microcontroller unit (MCU) from NXP Semiconductors, designed for automotive and industrial applications. It is part of the SPC56 32-bit Power Architecture family that is well-suited for a wide range of applications requiring high levels of performance, reliability, and efficiency.

Key Features

• Advanced Processor Core: At the heart of the SPC5607BK0MLQ6 is a 32-bit Power Architecture e200z0h CPU core, which operates at speeds up to 64 MHz. This core provides high computational performance and real-time responsiveness, making it ideal for time-sensitive tasks and complex algorithms.
• Memory Configuration: The MCU comes equipped with 768 KB of flash memory and 64 KB of RAM, offering ample space for application code and data storage. The flash memory also supports read while write (RWW) operations, enabling seamless firmware updates.
• Advanced Timer Units: Multiple timing units including Modular Event Timer (eMIOS), Periodic Interrupt Timer, and Real-Time Counter provide sophisticated timing control and PWM generation capabilities, crucial for motor control and other precision tasks.
• Enhanced Communication Interfaces: The device features a range of communication interfaces such as multiple CAN modules, LINFlex, DSPI, and I2C modules, facilitating easy integration into automotive networks and industrial control systems.
• Robust Safety Features: Safety features include a Memory Protection Unit (MPU), Error Correction Code (ECC) on both flash and RAM, and a built-in self-test for the CPU, ensuring high reliability and compliance with stringent safety standards like ISO 26262.

Applications

The SPC5607BK0MLQ6 is designed for applications that require robust performance and high levels of functional safety. It is particularly well-suited for:

• Automotive control units such as body control modules, gateways, and dashboard displays
• Motor control systems in industrial and automotive environments
• Sensor interfaces and actuator controls
• General-purpose embedded control applications

Package and Quality

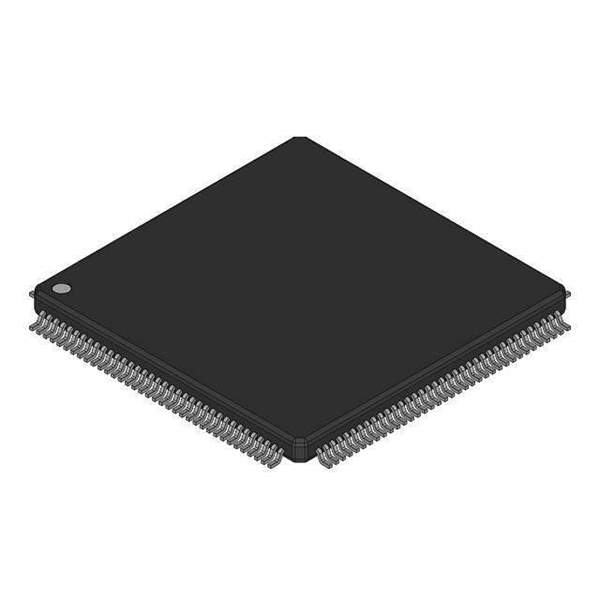

The SPC5607BK0MLQ6 is offered in a 144-pin LQFP package, which is designed to optimize the PCB space and is suitable for space-constrained applications. NXP's commitment to quality ensures that the SPC5607BK0MLQ6 meets the automotive industry's AEC-Q100 standard, providing the reliability required for automotive-grade applications.
