Product Overview: TDA7057AQ/N2,112

The TDA7057AQ/N2,112 is a high-quality audio amplifier integrated circuit (IC) manufactured by NXP Semiconductors. This IC is designed to deliver a superb audio experience for a wide range of consumer electronic applications. With its built-in dual-channel (stereo) capability, it is particularly well-suited for portable audio devices, televisions, and personal computers, where space is at a premium and audio quality is of importance.

Key Features

• Amplifier Type: The TDA7057AQ/N2,112 is a class AB amplifier, known for its efficiency and high-quality sound output.
• Output Power: It is capable of delivering 8 W of continuous output power per channel into an 8-ohm load, making it a robust choice for most mid-range audio applications.
• Supply Voltage: It operates over a wide supply voltage range from 6 V to 18 V, providing flexibility in various power environments.
• Channel Configuration: It features a dual-channel configuration, enabling it to drive stereo speakers with ease.
• Volume Control: The IC includes DC volume control, which allows for smooth adjustment of the audio level.
• Minimal External Components: The TDA7057AQ/N2,112 requires only a few external components, simplifying circuit design and reducing overall system cost.
• Protection Features: It incorporates various protection features, including short-circuit protection and thermal protection, ensuring reliability and longevity.

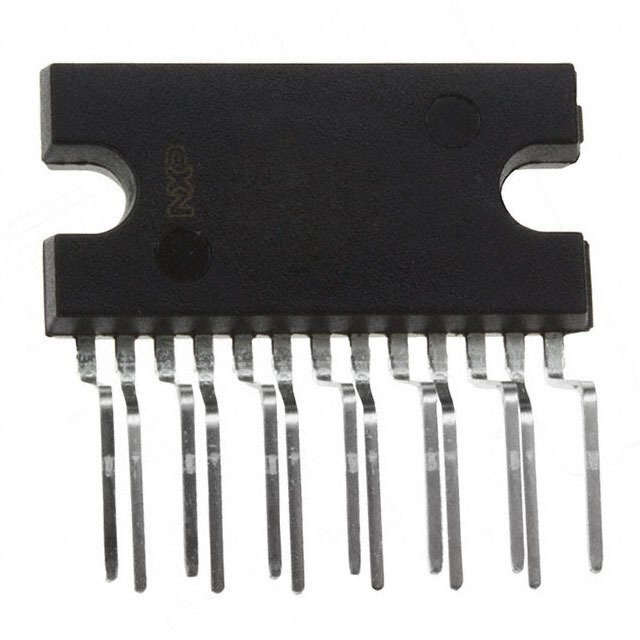

• Package: The IC comes in a 13-lead SIL-bent-SIP package, which is suitable for heat sinking over a wide temperature range.

Applications

The TDA7057AQ/N2,112 is versatile and can be used in a variety of applications where audio amplification is needed. Some of the typical applications include:

• Portable audio devices
• Television sets
• Personal computers and laptops
• Small home theater systems
• Active speakers

Conclusion

In summary, the TDA7057AQ/N2,112 from NXP Semiconductors is a powerful and reliable audio amplifier IC that offers excellent sound quality, efficiency, and ease of integration. Its robust feature set and protection mechanisms make it an ideal choice for designers looking to enhance the audio performance of their products.
