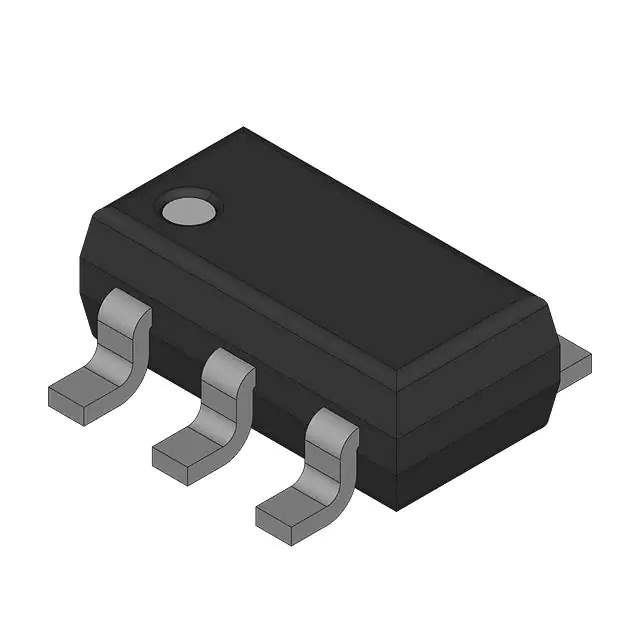

The TEA1993TS/1 is a state-of-the-art synchronous rectifier (SR) controller chip designed and manufactured by NXP Semiconductors. This advanced controller is specifically engineered to enhance the efficiency of secondary-side rectification in switch-mode power supplies (SMPS), particularly those utilized in USB-PD and notebook adapters, desktop computers, and televisions. It is an integral component for modern power supply designs that require high efficiency and reliability.

Key Features

• High Efficiency: The TEA1993TS/1 significantly reduces power loss by replacing Schottky diodes with low-resistance MOSFETs, thereby minimizing the voltage drop during the rectification process and increasing overall efficiency.
• Adaptive Gate Drive: It offers an adaptive gate drive for the SR MOSFETs, which ensures optimal driving of the MOSFETs over a wide range of load conditions. This adaptive drive helps in reducing power dissipation in the MOSFETs.
• Easy Implementation: Designed with ease of use in mind, the TEA1993TS/1 can be implemented into existing designs with minimal effort, simplifying the design process and shortening the time to market.
• Smart Control: The SR controller incorporates smart control algorithms that allow for continuous conduction mode (CCM), discontinuous conduction mode (DCM), and quasi-resonant mode (QRM) operation, making it versatile for various applications.

Applications

The TEA1993TS/1's flexibility and efficiency make it ideal for a wide range of applications. It is particularly well-suited for:

• USB Power Delivery (USB-PD) adapters
• Notebook adapters
• Desktop power supplies
• Televisions and monitors

Environmental and Quality Certifications

NXP is committed to delivering high-quality and environmentally friendly products. The TEA1993TS/1 complies with various industry standards, ensuring reliability and sustainability. Customers can trust the robustness and long-term performance of this synchronous rectifier controller.

Conclusion

In conclusion, the TEA1993TS/1 from NXP Semiconductors is an innovative solution for enhancing power supply efficiency. Its smart features and ease of implementation make it a top choice for engineers looking to improve the performance of their power supply designs.
