Overview of NXP's TJA1042T,118 CAN Transceiver

The TJA1042T,118 is a high-performance CAN (Controller Area Network) transceiver from NXP Semiconductors, designed to provide reliable communication in automotive and industrial applications. This transceiver is part of the TJA1042 series, which is known for its robustness, high-speed capabilities, and low-power operation.

Key Features

• High-Speed CAN Interface: The TJA1042T,118 supports the ISO 11898-2:2016 standard and is capable of data rates up to 1 Mbps.
• Low Power Mode: With a very low current standby mode, it helps to minimize the power consumption when the network is idle or in low-power mode.
• Improved Electromagnetic Compatibility (EMC): The device has excellent EMC performance, reducing the risk of electromagnetic interference in sensitive applications.
• Bus Fault Protection: It offers robust protection against transients on the CAN bus, enhancing system reliability.
• Automatic Thermal Shutdown: The transceiver is protected against damage from overheating with an automatic thermal shutdown feature.

Applications

The TJA1042T,118 is ideal for a wide range of applications within the automotive sector, including in-vehicle networks, body control modules, and gateway modules. It is also well-suited for industrial automation systems, where reliable communication and robustness are critical.

Package and Quality

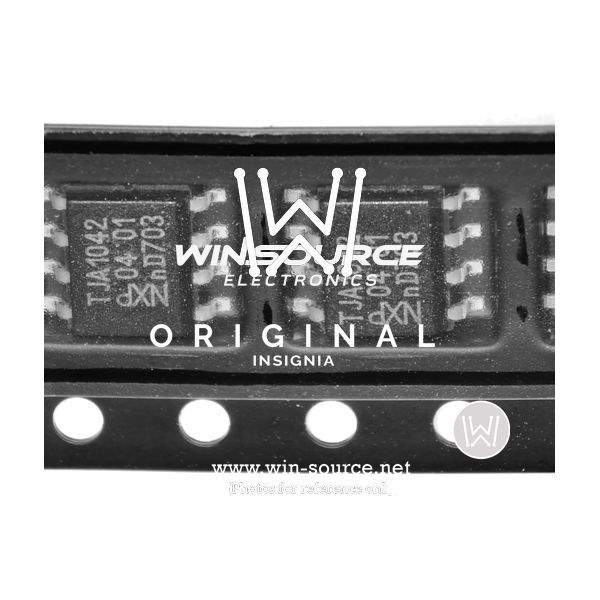

This transceiver comes in an 8-pin SOIC package, which is widely used and suitable for compact PCB layouts. NXP's commitment to quality ensures that the TJA1042T,118 meets stringent industry standards for performance and reliability.

Additional Benefits

The TJA1042T,118 integrates features such as an undervoltage detection, a permanent dominant detection on the bus, and a split voltage for logic interface levels. These features contribute to the device's flexibility and ease of integration into various system designs.

With its combination of high-speed operation, low-power consumption, and advanced protection mechanisms, the TJA1042T,118 from NXP Semiconductors is a smart choice for designers looking to implement a robust CAN network in their automotive or industrial applications.
