Same model may have multiple batches, images only for reference.
DA-T263-101E-TR Real Image
Same model may have multiple batches, images only for reference.

DA-T263-101E-TR

Part No DA-T263-101E-TR
Manufacturer Ohmite
Catalog Thermal - Heat Sinks
Description TO-263 HEAT SINK / POLY TAPE  /  Heat Sink TO-263 (D²Pak) Aluminum 2.0W @ 30°C Top Mount
Datasheet
DA-T263-101E-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Ohmite
Series D
Package Tape & Reel
Type Top Mount
Package Cooled TO-263 (D²Pak)
Attachment Method Solderable Feet
Shape Rectangular, Fins
Length 0.500" (12.70mm)
Width 1.020" (25.91mm)
Fin Height 0.400" (10.16mm)
Power Dissipation @ Temperature Rise 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow 8.00°C/W @ 500 LFM
Material Aluminum
Material Finish Black Anodized
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Other Names OHDA-T263-101E-TR-ND,DA-T263-101ECT,DA-T263-101EDKR,DA-T263-101ETR,OHDA-T263-101E-TR,DA-T263-101E-TR-ND
Standard Package 250
Win Source Part Number 1046425-DA-T263-101E-TR
Ultra Librarian 3D Model Ultra Librarian DA-T263-101E-TR CAD Model

Description

The Ohmite DA-T263-101E-TR is a thermal management electronic component that is designed to provide efficient cooling for your electronic devices.

  • Fin Height: 0.400 inches
  • Material: Aluminum
  • Finish: Black Anodized
  • Thermal Resistance: 8.00°C/W @ 500 LFM
  • Power Dissipation: Up to 2.0W @ 30°C
  • Application: Cooling Electronic Devices

You May Also Be Interested in

ATS-PCB1041 Real Image
ATS-PCB1041
Advanced Thermal Solutions Inc.
HEATSINK TO-220
Need more? Email Us
ATS-FPX025025035-78-C2-R0 Real Image
ATS-FPX025025035-78-C2-R0
Advanced Thermal Solutions Inc.
HEATSINK 25X25X35MM R-TAB FP
Need more? Email Us
581002B02500G Real Image
581002B02500G
Aavid Thermalloy
HEATSINK TO-220 PWR BLK W/PINS / Heat Sink TO-220 Aluminum 2.5W @ 50°C Board Level, Vertical

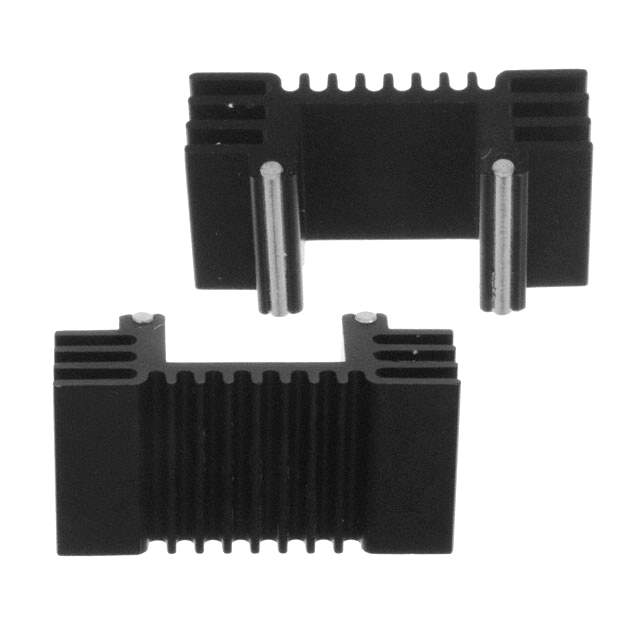

Need more? Email Us
