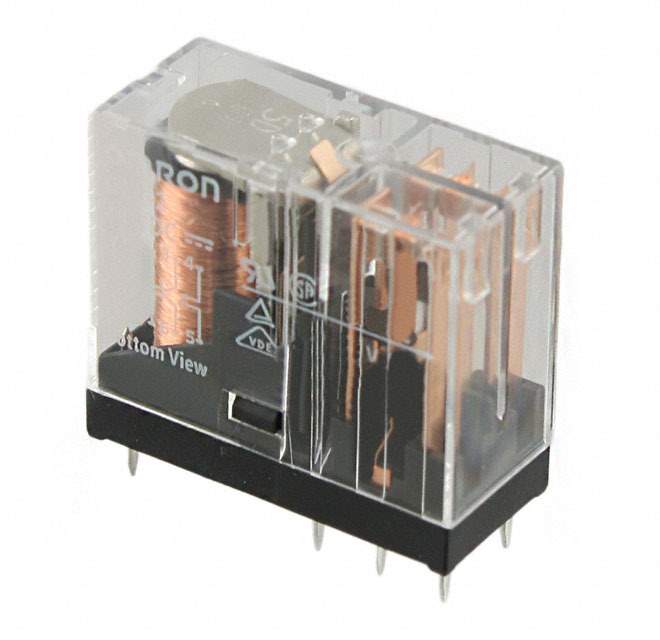

G2R-2-DC24 Real Image
Same model may have multiple batches, images only for reference.

G2R-2-DC24

Part No G2R-2-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
Datasheet
G2R-2-DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2R
Package Tray
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 380VAC, 125VDC - Max
Coil Current 21.8 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 16.8 VDC
Must Release Voltage 3.6 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 1.1 kOhms
Base Product Number G2R
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Other Names Z2870,2266-G2R-2-DC24,G2R2DC24,G2R2DC24BYOMI,G2R-2 DC24 BY OMI,G2R-2-DC24-ND,G2R224DC,G2RN8153D
Standard Package 100
Win Source Part Number 1060149-G2R-2-DC24
Ultra Librarian 3D Model Ultra Librarian G2R-2-DC24 CAD Model

Description

The Omron G2R-2-DC24 is a DPDT (2 Form C) power relay with a silver alloy contact material.

  • Coil Voltage: It has a coil voltage of 24VDC
  • Coil Resistance: a coil resistance of 1.1 kOhms.
  • Contact Rating: The relay has a contact rating of 5A and a switching voltage of 380VAC and 125VDC.
  • Timing: It has a release time of 5ms and an operate time of 15ms.
  • Package: The Omron G2R-2-DC24 is packaged in a tray and has a seal rating of sealed-flux protection.
