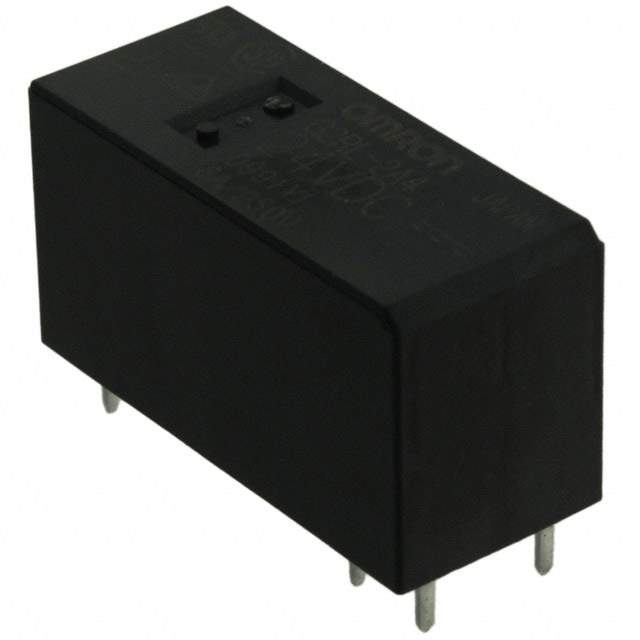

G2RL-2A4 DC24 Real Image
Same model may have multiple batches, images only for reference.

G2RL-2A4 DC24

Part No G2RL-2A4 DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 24V / General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G2RL
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 8 A
Switching Voltage 440VAC, 300VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 1.44 kOhms
Base Product Number G2R
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Other Names G2RL2A424DC,G2RL-2A4 DC24 BY OMB,G2RL-2A4DC24,G2RL2A4DC24BYOMB,G2RL2A4DC24,G2RL1010G,G2RL-2A4DC24-ND,Z3092
Standard Package 100
Win Source Part Number 1000230-G2RL-2A4 DC24
Ultra Librarian 3D Model Ultra Librarian G2RL-2A4 DC24 CAD Model

Description

The G2RL-2A4 DC24 is a power relay component from Omron Electronics Inc-EMC Div.

  • Contact Form: DPST-NO (2 Form A)
  • Contact Material: Silver alloy, cadmium-free
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.44 kOhms
  • Contact Rating: 8A
  • Switching Voltage: Up to 440VAC or 300VDC
  • Standard Package: 100 units
  • Package: Tube package
  • Operating Temperature Range: -40°C to 85°C
