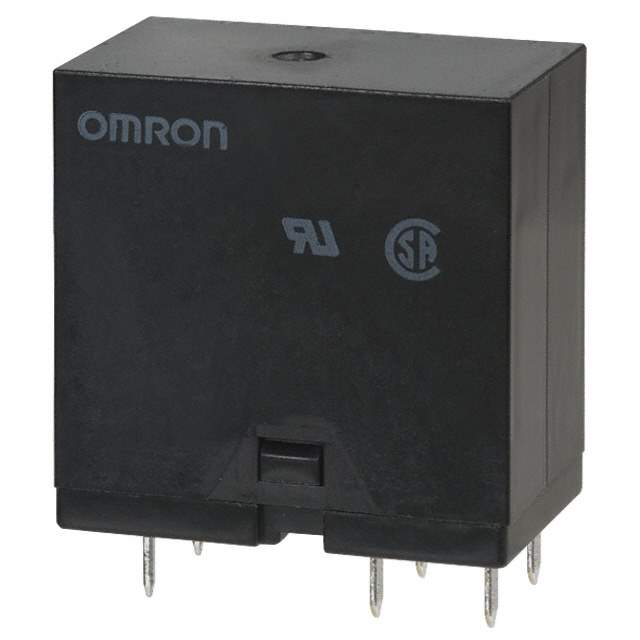

G4W-2214P-US-HP-DC24 Real Image
Same model may have multiple batches, images only for reference.

G4W-2214P-US-HP-DC24

Part No G4W-2214P-US-HP-DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 15A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 33.3mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 20ms
Release Time 5ms
Temperature Range - Operating -25°C ~ 55°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 720 Ohms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810792-G4W-2214P-US-HP-DC24
Ultra Librarian 3D Model Ultra Librarian G4W-2214P-US-HP-DC24 CAD Model

Description

The G4W-2214P-US-HP-DC24 is a general-purpose relay manufactured by Omron Electronics Inc-EMC Div.

  • Contact Form: DPST-NO (2 Form A)
  • Coil Voltage: 24VDC
  • Switching Voltage: 250VAC and 125VDC maximum
  • Coil Resistance: 720 Ohms
  • Coil Current: 33.3mA
  • Operating Temperature Range: -25°C to 55°C
