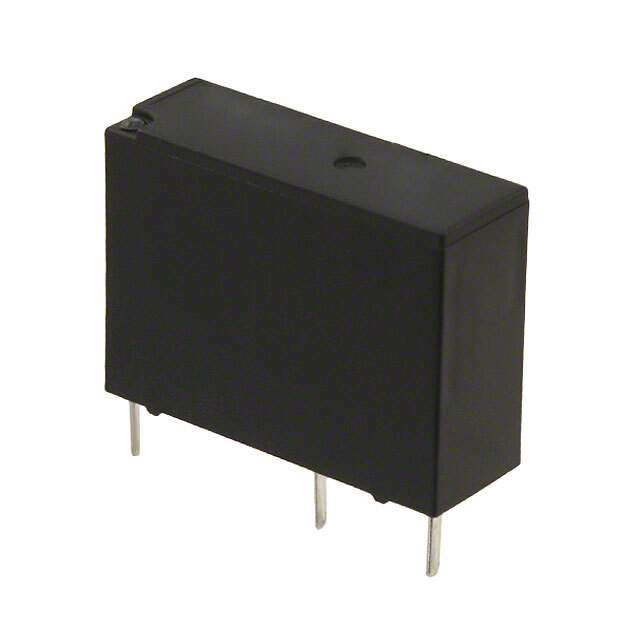

G5NB-1A4-E DC5 Real Image
Same model may have multiple batches, images only for reference.

G5NB-1A4-E DC5

Part No G5NB-1A4-E DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5NB-E
Package Tray
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number G5NB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names G5NB-1A4-EDC5-ND,G5NB1A4EDC5,G5NB1A4EDC5BYOMZNA,G5NB-1A4-E DC5-ND,Z8627,G5NB-1A4-EDC5
Standard Package 500
Win Source Part Number 1160450-G5NB-1A4-E DC5
Ultra Librarian 3D Model Ultra Librarian G5NB-1A4-E DC5 CAD Model

Description

The Omron G5NB-E is a general-purpose non-latching relay with a 5VDC coil voltage.

  • Relay Type: General Purpose, Non-Latching
  • Coil Voltage: 5VDC
  • Contact Form: SPST-NO
  • Contact Rating: 5A
  • Switching Voltage: 250VAC, 30VDC - Max
  • Coil Resistance: 125 Ohms
  • Coil Current: 40mA
  • Operate Time: 10ms
  • Release Time: 10ms
  • Sealed: Fully
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C ~ 70°C
  • Package: Tray
