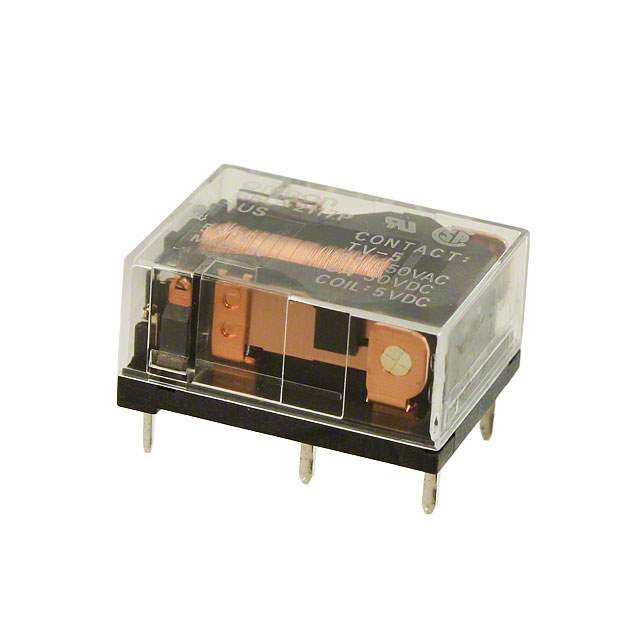

G6C-2117P-US-DC5 Real Image
Same model may have multiple batches, images only for reference.

G6C-2117P-US-DC5

Part No G6C-2117P-US-DC5
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 5V / General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 5VDC Coil Through Hole
Datasheet
G6C-2117P-US-DC5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6C
Package Bulk
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 8 A
Switching Voltage 380VAC, 125VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number G6C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names G6C-2117P-US-DC5-ND,G6C2117PUSDC5,Z3285,G6C2117PUS5DC,2266-G6C-2117P-US-DC5,G6C 1169M
Standard Package 1,000
Win Source Part Number 1060299-G6C-2117P-US-DC5
Ultra Librarian 3D Model Ultra Librarian G6C-2117P-US-DC5 CAD Model

Description

This electronic component is a power relay with a DPST-NO/NC (1 Form A, 1 Form B) contact form.

  • Manufacturer: Omron Electronics Inc-EMC Div
  • Win Source Part Number: 1060299-G6C-2117P-US-DC5
  • Coil Voltage: 5VDC
  • Coil Resistance: 125 Ohms
  • Contact Rating (current): 8 A
  • Switching Voltage: 380VAC, 125VDC - Max
  • Mounting: Through hole
  • Seal Rating: Sealed - flux protection
  • Temperature Range: -25°C to 70°C
  • Category: Relays>Power Relays, Over 2 Amps.
  • Supply and Demand Status: Sufficient
