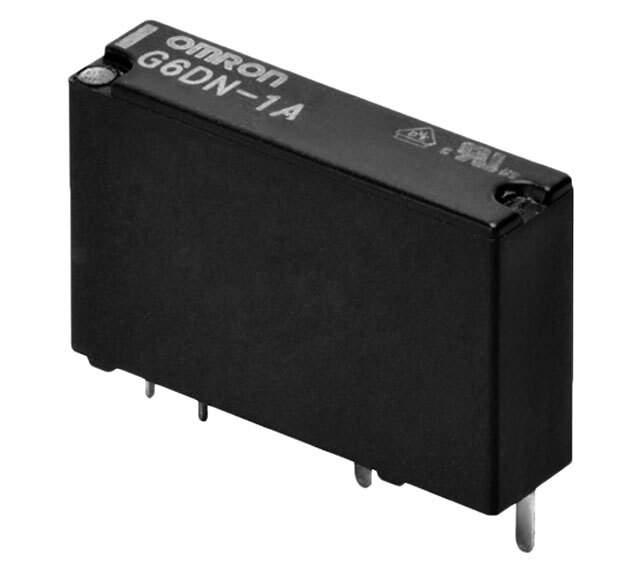

G6DN-1A-SL DC12 Real Image
Same model may have multiple batches, images only for reference.

G6DN-1A-SL DC12

Part No G6DN-1A-SL DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6DN
Package Tray
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 277VAC, 125VDC - Max
Coil Current 9.2 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 8.4 VDC
Must Release Voltage 0.6 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 90°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 1.31 kOhms
Base Product Number G6D
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1349683-G6DN-1A-SL DC12
Ultra Librarian 3D Model Ultra Librarian G6DN-1A-SL DC12 CAD Model

Description

The G6DN-1A-SL DC12 series power relay is a general-purpose relay with a single-pole single-throw normally open (SPST-NO) contact form and is manufactured by Omron Electronics Inc-EMC Div and the base product number is G6DN.

  • Contact Form: SPST-NO
  • Contact Material: Silver Alloy
  • Contact Rating (Current): 5A
  • Switching Voltage: 277VAC and 125VDC (max)
  • Coil Voltage: 12VDC
  • Coil Resistance: 1.31 kOhms
  • Coil Current: 9.2mA
  • Operate Time: 10ms
  • Release Time: 5ms
  • Mounting: Through Hole
  • Termination Style: PC Pin
  • Seal Rating: Fully Sealed
  • Temperature Range: -40°C to 90°C
  • Package: Tray
  • Standard Package: 100
