Same model may have multiple batches, images only for reference.

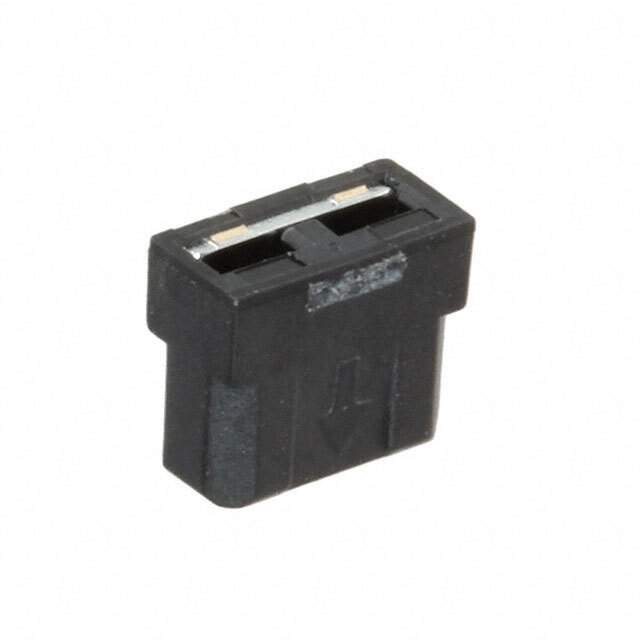

XJ8A-0241 Real Image
Same model may have multiple batches, images only for reference.

XJ8A-0241

Part No XJ8A-0241
Manufacturer Omron
Catalog Shunts, Jumpers
Description CONN SOCKET JUMPER 2POS / 2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Shunts, Jumpers
Mfr Omron Electronics Inc-EMC Div
Series XJ8
Package Bulk
Type Open Top
Gender Female Sockets
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.100" (2.54mm)
Height 0.173" (4.40mm)
Contact Finish Gold
Contact Finish Thickness 5.90µin (0.150µm)
Color Black
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Voltage Rating 300VAC
Current Rating (Amps) 2A
Base Product Number XJ8A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Other Names XJ8A0241NC,XJ8A-0241-ND,XJ8A0241,Z5277
Standard Package 100
Win Source Part Number 1000823-XJ8A-0241
Ultra Librarian 3D Model Ultra Librarian XJ8A-0241 CAD Model

Description

Omron XJ8A-0241 is a versatile connector that is used in various electronic devices. It is an open-top type connector with a pitch of 0.100" (2.54mm).

  • Contact Finish: Gold with a thickness of 5.90µin (0.150µm)
  • Connector Type: Female Socket
  • Housing Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Material Flammability Rating: UL94 V-0
  • Voltage Rating: 300VAC
  • RoHS Compliant: Yes
  • Standard Package: 100
  • Current Rating: 2A
  • Height: 0.173" (4.40mm)
