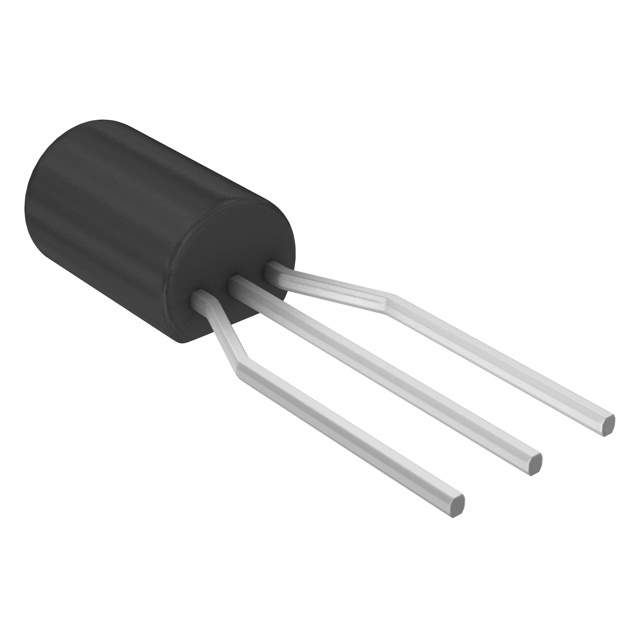

ON Semiconductor 2SA1020RLRAG PNP Transistor

The ON Semiconductor 2SA1020RLRAG is a high-quality PNP transistor designed for use in various electronic applications. This versatile component is well-suited for amplification and switching purposes, offering reliable performance across a broad range of operating conditions.

Key Features:

• Type: PNP Bipolar Transistor
• Package: TO-92
• Collector-Emitter Voltage (VCEO): 50V
• Collector-Base Voltage (VCBO): 60V
• Emitter-Base Voltage (VEBO): 5V
• Collector Current (IC): 1A
• Power Dissipation (Pd): 900mW
• DC Current Gain (hFE): 70 to 400
• Operating Junction Temperature Range: -55°C to +150°C

The 2SA1020RLRAG is housed in a TO-92 package, which is widely recognized for its simplicity and ease of mounting on printed circuit boards. The transistor's maximum collector-emitter voltage is 50V, with a collector-base voltage of 60V, and an emitter-base voltage of 5V. It is capable of handling a collector current of up to 1A, making it suitable for medium power applications.

With a power dissipation of 900mW, the 2SA1020RLRAG can sustain moderate thermal conditions without compromising its functionality. The device also features a DC current gain (hFE) ranging from 70 to 400, providing flexibility in gain selection for amplification purposes.

The operating junction temperature range of -55°C to +150°C ensures that the transistor can perform consistently in a wide array of environmental conditions, from very cold to quite hot. This makes the 2SA1020RLRAG an ideal choice for consumer electronics, power management circuits, and general-purpose amplification tasks.

ON Semiconductor's commitment to quality means that the 2SA1020RLRAG is a reliable component for designers and engineers looking to create efficient and durable electronic products. Whether you're working on audio amplifiers, switch mode power supplies, or other applications requiring a robust PNP transistor, the 2SA1020RLRAG is a solid choice to consider.
