ON Semiconductor 2SA1706-S PNP Transistor

The ON Semiconductor 2SA1706-S is a high-quality PNP transistor designed for a variety of applications that require efficient amplification and switching. This versatile component is an essential building block in electronic circuits and is widely used in both commercial and industrial products.

Key Features:

• Transistor Type: The 2SA1706-S is a PNP (Positive-Negative-Positive) bipolar junction transistor (BJT), which means it is controlled by the flow of charges between a pair of p-type and n-type semiconductor materials.
• High Voltage Capabilities: This transistor is capable of handling high voltages, making it suitable for power regulation and management in circuits that require high voltage operations.
• Low Saturation Voltage: It offers a low collector-emitter saturation voltage, which translates to reduced power loss and improved efficiency in the operation of the device.
• Fast Switching Speed: The 2SA1706-S provides fast switching capabilities, which is beneficial for applications that need quick response times.
• Amplification: As with all transistors, the 2SA1706-S can amplify small input signals into larger outputs, making it ideal for audio amplifiers, signal processing, and other applications that require signal amplification.

Applications:

• Power supply circuits
• Audio amplifiers
• Signal processing
• Switching applications
• Driver stages in high-fidelity amplifiers and sound equipment

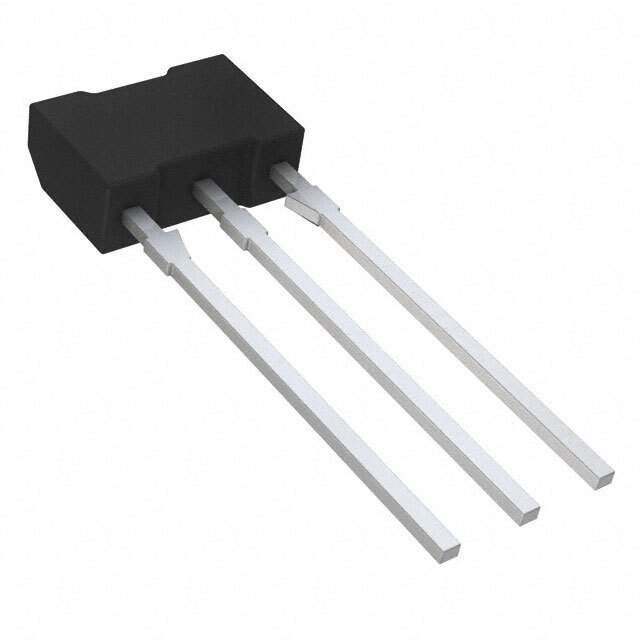

The ON Semiconductor 2SA1706-S transistor is packaged in a TO-92S form factor, which is a commonly used package for small-signal transistors. Its compact size and leaded design make it easy to integrate into various circuit boards and its robust construction ensures reliability and longevity in operation.

Whether you are designing a new piece of electronic equipment or repairing an existing one, the 2SA1706-S from ON Semiconductor is a great choice for a reliable and efficient PNP transistor. Its combination of high voltage handling, low saturation, and fast switching make it a versatile component for your electronic design needs.
