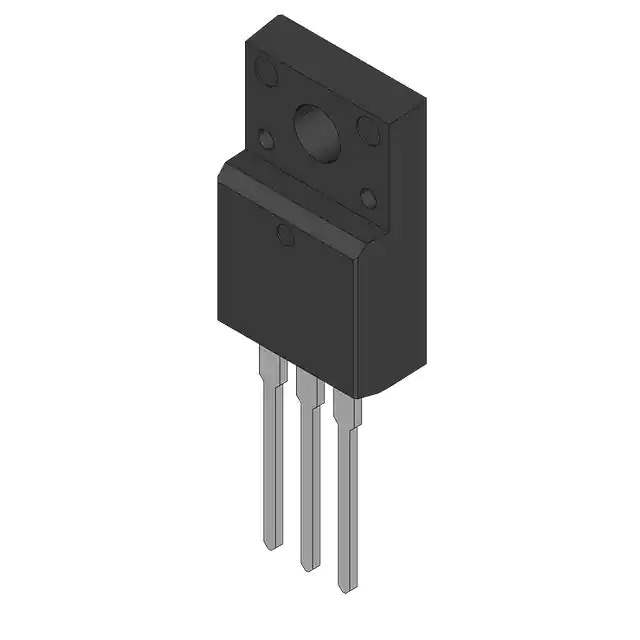

ON Semiconductor 2SB1226 PNP Transistor Overview

The ON Semiconductor 2SB1226 is a PNP bipolar junction transistor (BJT) designed for use in various power management and signal processing applications. This versatile component is known for its high-speed switching capabilities and impressive power handling, making it an ideal choice for designers looking to optimize their electronic circuits for efficiency and performance.

Key Features

• High Current Gain Bandwidth Product: The 2SB1226 boasts a high fT, ensuring efficient performance in high-frequency applications.
• Low Saturation Voltage: This transistor is engineered to have a low V<sub>CE(sat), which minimizes power loss and heat generation when the transistor is in the on-state, contributing to the overall energy efficiency of the device it's used in.
• High Power Dissipation: With an impressive P<sub>TOT, the 2SB1226 can handle higher power levels, making it suitable for more demanding applications.
• Complementary NPN Type Available: The 2SB1226 can be paired with its complementary NPN transistor, providing flexibility in designing push-pull, class B, and other types of amplifiers that require complementary pairs.

Applications

The ON Semiconductor 2SB1226 is ideal for a variety of applications, including:

• Power supply circuits
• Audio amplifiers
• Switching regulators
• Driver stages in high-fidelity amplifiers and sound systems
• DC-DC converters

Technical Specifications

Parameter Value Collector-Emitter Voltage (V<sub>CEO) -80 V Collector Current (I<sub>C) -1 A Power Dissipation (P<sub>TOT) 1 W DC Current Gain (h<sub>FE) 70 to 700 Transition Frequency (f<sub>T) 120 MHz

In summary, the ON Semiconductor 2SB1226 is a high-performance PNP transistor that delivers reliable and efficient operation in a wide range of electronic circuits. Its robust design and high power handling capabilities make it a go-to choice for engineers and designers looking to create compact, high-efficiency designs.
