ON Semiconductor 2SC4413-TL-E Bipolar Transistor

The 2SC4413-TL-E is a high-performance NPN bipolar junction transistor (BJT) from ON Semiconductor, renowned for its efficiency and reliability in a variety of electronic applications. This component is specifically designed to meet the rigorous demands of modern electronic circuits, offering a perfect blend of speed, power handling, and amplification characteristics.

Key Features

• Transistor Type: NPN - The NPN configuration is a common type of bipolar junction transistor that is used for amplification and switching purposes.
• Collector-Emitter Voltage (Vceo): 50V - This voltage rating indicates the maximum voltage the transistor can withstand between the collector and emitter when the base is open.
• Collector Current (Ic): 1A - The collector current rating specifies the maximum current the transistor can handle through the collector terminal.
• Power Dissipation (Pd): 900mW - This value represents the maximum power that the transistor can dissipate without exceeding its maximum operating temperature.
• DC Current Gain (hFE): 70 to 700 - The DC current gain is a measure of the transistor's ability to amplify the input signal. A higher hFE indicates stronger amplification capabilities.
• Operating Temperature: -55°C to +150°C - This range specifies the full range of ambient temperatures within which the transistor can operate reliably.

Applications

The 2SC4413-TL-E transistor is versatile and can be used in various applications such as:

• Audio frequency amplifier circuits
• Switching regulators
• Driver stages in high-fidelity amplifiers and sound equipment
• Power management functions in consumer electronics
• Signal processing circuits where high gain and low noise are required

Package and Quality Assurance

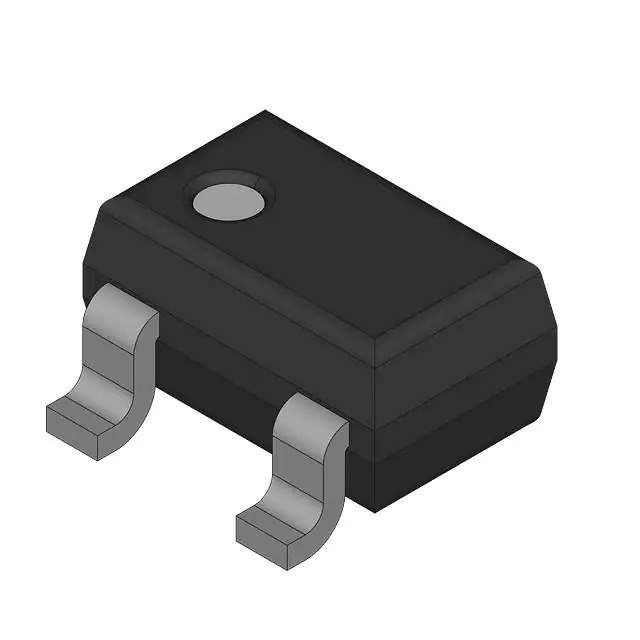

The transistor comes in a compact SOT-428 package, which is suitable for surface-mount technology (SMT), allowing for efficient assembly and space-saving on printed circuit boards (PCBs). ON Semiconductor ensures that each 2SC4413-TL-E transistor meets strict quality standards, providing reliability and performance that engineers and designers can trust for their critical applications.

Overall, the 2SC4413-TL-E from ON Semiconductor is an excellent choice for designers looking for a robust NPN transistor capable of delivering consistent performance across a wide range of electronic devices.
