ON Semiconductor ADP3198JCPZ Voltage Regulator

The ON Semiconductor ADP3198JCPZ is a highly integrated, multi-phase synchronous Buck switching regulator controller, designed to deliver robust power control for advanced microprocessors. This precision voltage regulation device is tailored to meet the stringent power supply requirements of high-performance CPUs and GPUs, making it an ideal solution for computing and gaming applications where efficiency and reliability are paramount.

Featuring an advanced control architecture, the ADP3198JCPZ provides excellent transient response, ensuring that the output voltage remains stable under varying load conditions. This is crucial for maintaining system stability and performance, particularly in systems that are subject to sudden changes in power demand.

The device supports a wide input voltage range and is capable of driving multiple parallel power stages for scalable output current, accommodating the needs of power-hungry processors. With its integrated gate drivers, the ADP3198JCPZ minimizes external component count, thereby reducing board space and simplifying the design process.

Key features of the ADP3198JCPZ include programmable frequency operation, precision reference voltage, and overvoltage protection. These features ensure that the device can be finely tuned to meet the specific requirements of the application, while also safeguarding the processor and other sensitive components from electrical damage.

Additionally, the ADP3198JCPZ is equipped with a range of monitoring and protection functions, including under-voltage lockout, thermal shutdown, and current limiting. These built-in safety measures provide an extra layer of security, helping to prolong the life of the end product by preventing damage from abnormal operating conditions.

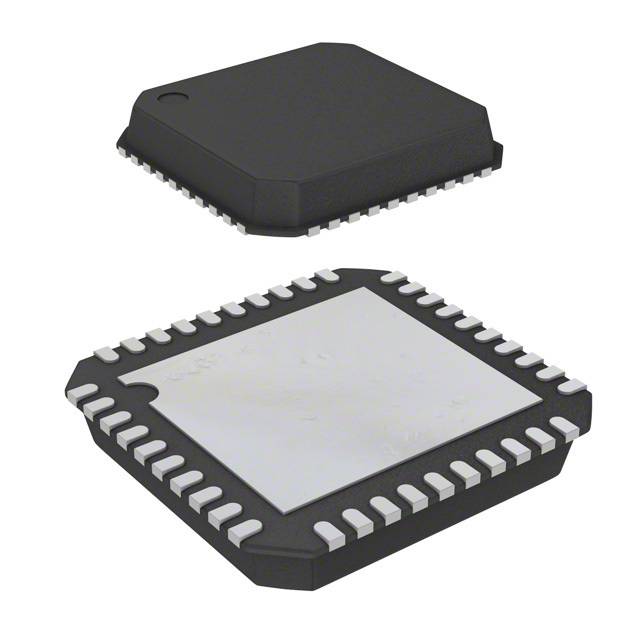

ON Semiconductor's commitment to quality is reflected in the ADP3198JCPZ's robust design, which is housed in a compact 32-lead LFCSP (Lead Frame Chip Scale Package), ensuring a small footprint and excellent thermal performance. Whether for desktops, laptops, servers, or high-performance gaming rigs, the ADP3198JCPZ stands out as a versatile and reliable choice for advanced power management solutions.
