ON Semiconductor ADT7476AARQZ-R Overview

The ADT7476AARQZ-R is a versatile and highly integrated device from ON Semiconductor, designed to provide comprehensive monitoring and control functionalities for system temperatures and fan speeds. This device is particularly well-suited for applications within the computing, networking, and telecommunications sectors, where maintaining optimal thermal conditions is critical for system reliability and performance.

Key Features

• Temperature Monitoring: The ADT7476AARQZ-R comes equipped with three temperature sensor inputs. It can monitor its own internal temperature as well as two remote thermal diodes, providing precise temperature readings that are crucial for effective thermal management.
• Fan Speed Control: It features four fan speed control outputs, enabling it to manage up to four fans. The device can adjust fan speeds based on temperature inputs, ensuring efficient cooling while minimizing noise and power consumption.
• PWM Outputs: The device includes pulse-width modulation (PWM) outputs for advanced fan control, providing smoother and more precise fan speed adjustments.
• Versatile Configuration: Configurable through an I2C/SMBus interface, the ADT7476AARQZ-R allows for easy integration and customization within a system, enabling users to set temperature thresholds, fan speed curves, and other parameters as needed.
• Alarm Outputs: It features alarm outputs that can be programmed to signal an alert if the temperature exceeds predefined limits, or if a fan fails, thus ensuring prompt response to potential system issues.
• Energy Efficient: The device supports automatic fan speed control, which can lead to reduced energy consumption by adjusting the cooling power to the actual need.

Applications

The ADT7476AARQZ-R is ideal for a broad range of applications that require active thermal management. It is commonly used in desktop and laptop computers, servers, data storage systems, networking equipment, and telecommunications infrastructure. Its robust feature set ensures that it can meet the stringent requirements of these applications, providing reliable and efficient temperature monitoring and fan control.

Quality and Reliability

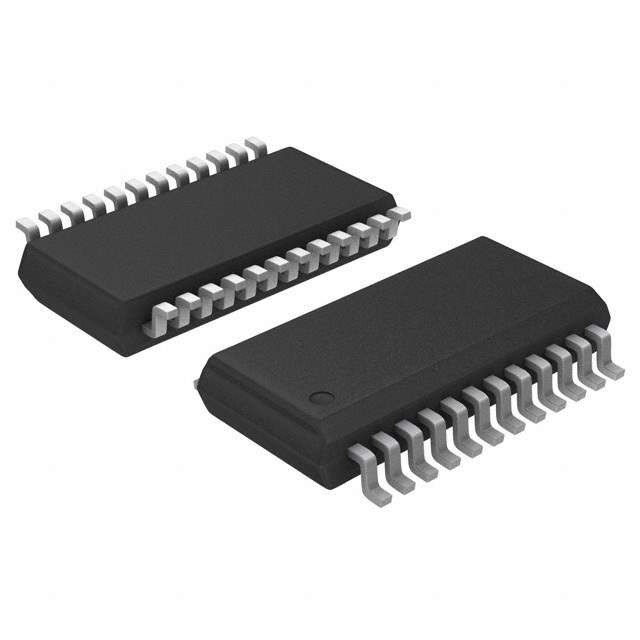

As a product of ON Semiconductor, a leading semiconductor solutions provider, the ADT7476AARQZ-R is manufactured to high-quality standards. The device is available in a 24-lead QSOP package, ensuring a compact footprint for space-constrained applications. Its reliability and performance make it a trusted choice for engineers and designers looking to enhance the thermal management capabilities of their systems.
