ON Semiconductor AR0134CSSM00SUEA0-DPBR CMOS Image Sensor

The ON Semiconductor AR0134CSSM00SUEA0-DPBR is a high-performance 1/3-inch CMOS digital image sensor that delivers superior image quality with 1.2-megapixel resolution at a frame rate of 60 frames per second (fps). This sensor is designed to cater to a wide array of applications, ranging from industrial automation to security and surveillance systems.

Key Features:

• Resolution: The sensor offers a high-definition resolution of 1280 x 960 pixels, which is ideal for capturing detailed images in various lighting conditions.
• Pixel Size: With a pixel size of 3.75 µm x 3.75 µm, it provides a perfect balance between high resolution and sensitivity, ensuring clear and crisp images.
• Frame Rate: A high frame rate of 60 fps allows for smooth video capture, making it suitable for applications that require dynamic scene analysis and real-time monitoring.
• Global Shutter: The global shutter technology ensures that all pixels are exposed simultaneously, eliminating distortion in fast-moving scenes and providing accurate image acquisition.
• Dynamic Range: The sensor features a wide dynamic range that enables it to perform well in environments with varying levels of brightness, from low-light to bright outdoor conditions.
• Monochrome: As a monochrome sensor, it is optimized for applications that do not require color imaging but demand high sensitivity and contrast.

Applications:

The AR0134CSSM00SUEA0-DPBR is versatile and can be used in a variety of applications, such as:

• Machine Vision Systems
• Security and Surveillance Cameras
• Barcode Scanners
• Medical Imaging
• Automotive and Robotics Vision Systems

Technical Specifications:

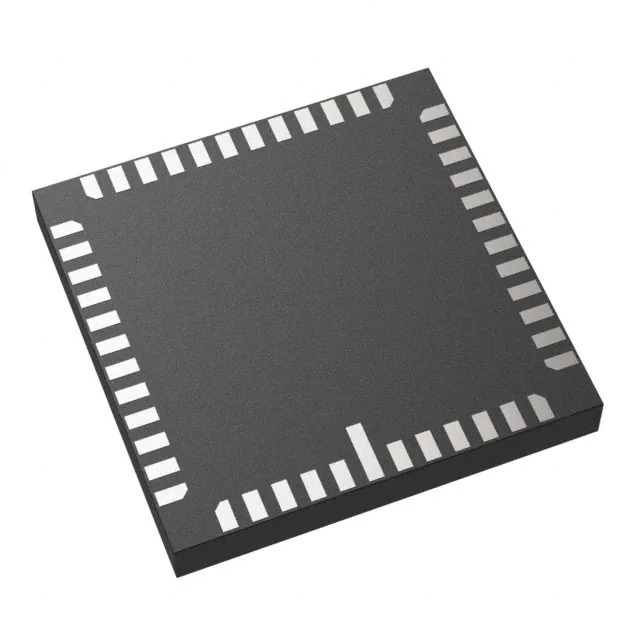

The sensor operates over a temperature range of -30°C to +85°C and comes in a CSP-48 package. It supports various interfaces, including parallel and serial, providing flexibility in system design. The AR0134CSSM00SUEA0-DPBR also features on-chip ADC (analog-to-digital conversion), which simplifies the design-in process, reducing the need for external components.

With its advanced imaging capabilities, the ON Semiconductor AR0134CSSM00SUEA0-DPBR CMOS image sensor is an excellent choice for developers and manufacturers looking to integrate high-quality imaging solutions into their products.
