ON Semiconductor CAT28C512LI12 EEPROM

The ON Semiconductor CAT28C512LI12 is a high-performance 512-Kilobit Parallel EEPROM integrated circuit designed for a wide range of applications that require reliable data storage. This non-volatile memory device offers a significant amount of data storage space, making it an ideal choice for systems that require data retention even when the power is turned off.

Key Features

• Memory Size: 512 Kilobits (64K x 8) providing ample space for firmware storage, configuration parameters, and data logging.
• Access Time: Fast access time of 120 ns, allowing quick read operations which is crucial for high-speed microprocessor systems.
• Write Cycle Time: Efficient write cycle time of 10 ms typical, ensuring swift data storage and minimal delay for write operations.
• Operating Voltage: Wide VCC range from 4.5V to 5.5V, offering flexibility in various power supply environments.
• Endurance: High endurance with 1,000,000 program/erase cycles, guaranteeing a long operational lifespan.
• Data Retention: Guaranteed data retention for 100 years, providing long-term data integrity.

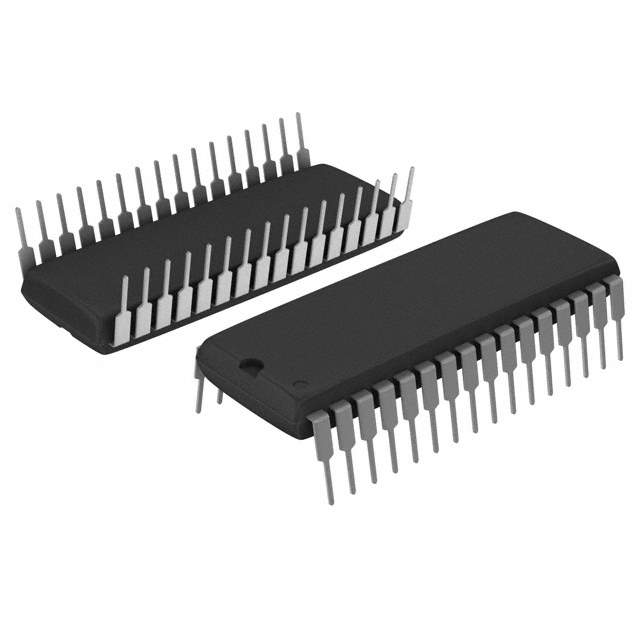

• Package: Available in a 32-pin, 600 mil PDIP package, which is suitable for through-hole PCB mounting.

Applications

The CAT28C512LI12 is versatile and can be used in a variety of applications. It is particularly well-suited for:

• Embedded systems that require a reliable boot memory
• Industrial control systems needing persistent parameter storage
• Telecommunication systems for firmware and configuration data
• Automotive electronics where data integrity and endurance are critical
• Consumer electronics, such as set-top boxes and gaming consoles

Reliability and Quality

ON Semiconductor is known for its commitment to quality and reliability. The CAT28C512LI12 EEPROM is manufactured with this commitment in mind, ensuring that it meets the stringent requirements of industrial and automotive-grade applications. Each device is rigorously tested to ensure it performs to the specifications under a wide range of conditions.

In conclusion, the CAT28C512LI12 from ON Semiconductor is a robust and reliable EEPROM solution that offers a great combination of speed, endurance, and data retention, making it an excellent choice for designers looking for a memory component that will stand the test of time in their electronic designs.
