Product Overview: CPH6003A-TL-E by ON Semiconductor

The CPH6003A-TL-E is a high-performance P-Channel MOSFET designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This MOSFET is a testament to ON Semiconductor's commitment to providing advanced power solutions for a wide range of electronic applications.

Key Features

• Low On-Resistance: The device boasts an exceptionally low on-resistance, which minimizes conduction losses and enhances overall efficiency, making it suitable for power-intensive applications.
• High-Speed Switching: Engineered for high-speed switching, the CPH6003A-TL-E provides excellent performance in applications that require fast turn-on and turn-off times.
• P-Channel Device: As a P-Channel MOSFET, it allows for simpler drive circuits compared to its N-Channel counterparts, especially in high-side switching configurations.

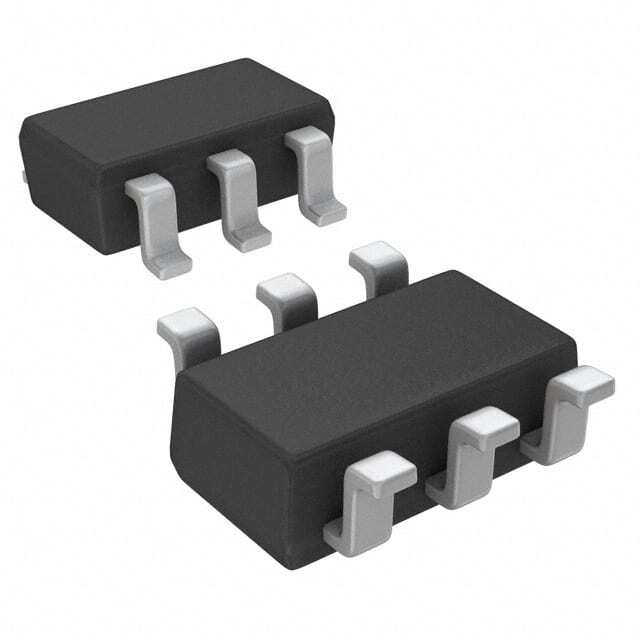

• Surface Mount Package: This MOSFET comes in a compact CPH-3 package, making it ideal for space-constrained applications while offering excellent thermal performance.
• Lead-Free and RoHS Compliant: ON Semiconductor ensures that the CPH6003A-TL-E meets current environmental standards, including RoHS compliance, reflecting the company's dedication to environmental sustainability.

Applications

With its robust design and efficient performance, the CPH6003A-TL-E is well-suited for a variety of applications, including:

• Power Management Systems
• Load Switching
• Battery-Powered Devices
• DC/DC Converters
• Motor Drives

Technical Specifications

The CPH6003A-TL-E operates with a drain-source voltage (Vdss) of -30V, and a continuous drain current (Id) of -6A at 25°C. Its gate-source voltage (Vgs) is rated at ±20V, and it features a low threshold voltage, ensuring low-voltage operation. The device's power dissipation is 1.4W, which contributes to its efficiency in power-sensitive designs.

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability. The CPH6003A-TL-E is subject to rigorous testing and quality control measures to ensure that it meets the high standards expected by electronic designers and manufacturers worldwide.

In summary, the CPH6003A-TL-E from ON Semiconductor is a versatile and efficient P-Channel MOSFET that offers low on-resistance, high-speed switching, and a compact form factor, making it an excellent choice for a wide range of power management applications.
