ON Semiconductor ESD9L3.3ST5G: ESD Protection Diode

The ESD9L3.3ST5G is a state-of-the-art ESD protection diode designed meticulously by ON Semiconductor to provide a robust shield against electrostatic discharge (ESD) for sensitive electronic components. This compact and efficient device is a perfect solution for safeguarding high-speed data lines and other vulnerable circuits in a variety of applications, including mobile phones, portable electronics, and communication systems.

Key Features

• Low Clamping Voltage: This diode offers a low clamping voltage, which is essential for protecting modern electronics with very fine geometries that are sensitive to high voltage transients.
• Fast Response Time: The ESD9L3.3ST5G reacts in a matter of nanoseconds upon detecting an ESD event, ensuring immediate protection for the connected components.
• Low Leakage Current: It boasts a low leakage current, minimizing power loss when the device is in standby mode, thereby extending the battery life of portable devices.
• Standoff Voltage: The device is rated for a standoff voltage of 3.3 volts, making it suitable for a range of low-voltage applications.

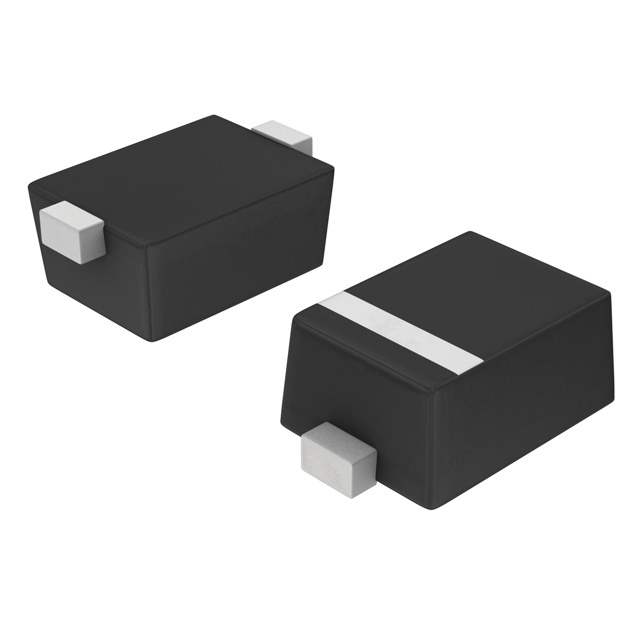

• Compact SOD-923 Package: The ultra-small SOD-923 package is ideal for space-constrained applications, allowing for high-density circuit board designs.
• IEC Compliance: It is compliant with the IEC61000-4-2 standard, ensuring reliable protection against ESD pulses.

Applications

The ESD9L3.3ST5G is versatile and can be used in a wide array of electronic devices. Its primary function is to protect sensitive components from ESD damage, which can occur during the manufacturing process or from user interaction. The diode is particularly useful in:

• USB interfaces
• HDMI ports
• Smartphones and tablets
• Portable gaming systems
• Digital cameras
• Wearable technology

In conclusion, the ESD9L3.3ST5G from ON Semiconductor is an essential component that brings high-level ESD protection to sensitive electronics without compromising performance. Its small footprint and powerful features make it an excellent choice for designers looking to enhance the durability and reliability of their products.
