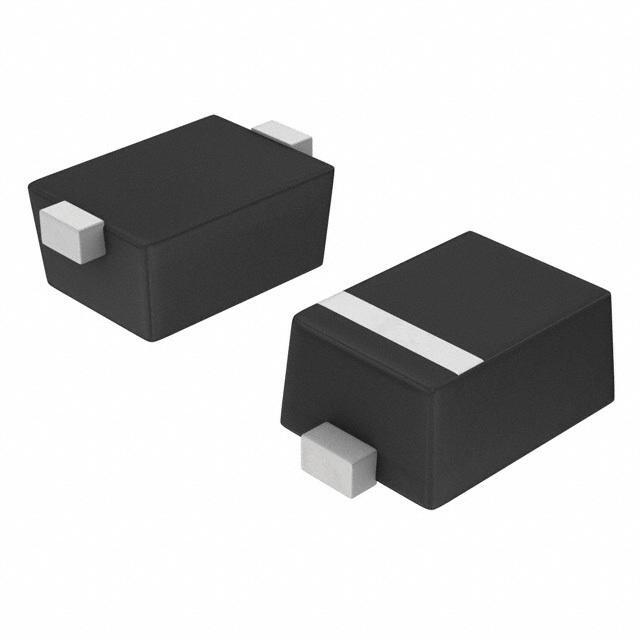

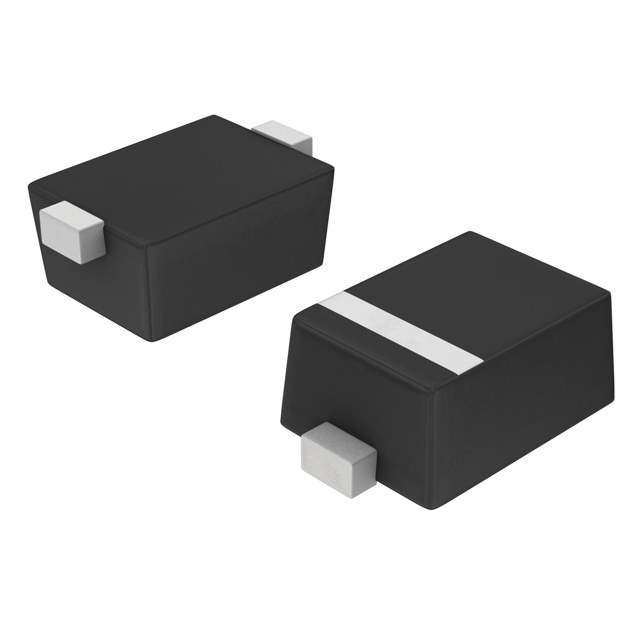

ON Semiconductor ESD9L5.0ST5G - ESD Protection Diode

The ESD9L5.0ST5G from ON Semiconductor is a robust electrostatic discharge (ESD) protection diode designed to safeguard sensitive electronic components from transient voltage spikes that can occur during typical ESD events. This compact and versatile component is an essential addition to any circuit where ESD protection is a concern, such as in consumer electronics, communication devices, and computer interfaces.

Key Features

• Low Clamping Voltage: The device offers a low clamping voltage, which is crucial for protecting sensitive circuit elements from the damaging effects of overvoltage conditions during an ESD event.
• Fast Response Time: With an extremely fast response time, the ESD9L5.0ST5G can react to ESD strikes almost instantaneously, ensuring that the protected components are not exposed to harmful voltage levels for any significant duration.
• Low Leakage Current: The diode maintains a low leakage current under normal operating conditions, which helps in preserving the energy efficiency of the overall system and minimizing power loss.
• Standoff Voltage: It has a standoff voltage of 5.0V, which is suitable for a wide range of applications that require a moderate level of voltage protection.
• Compact Package: The ESD9L5.0ST5G comes in a small SOD-923 package, making it an ideal choice for space-constrained applications without compromising on protection capabilities.

Applications

The ESD9L5.0ST5G is designed for use in various applications where ESD protection is critical. It is commonly used in:

• Portable Electronics
• Smartphones and Tablets
• Data Lines for Communication Standards (e.g., USB, HDMI)
• Computer Peripherals
• Networking Devices

Reliability and Quality

ON Semiconductor is known for its commitment to quality and reliability, and the ESD9L5.0ST5G is no exception. It is manufactured to stringent standards, ensuring that it meets or exceeds the requirements of the most demanding ESD protection applications. With this component, designers can be confident in the continuous protection of their electronic products from the potential damages of electrostatic discharge.

For more detailed information, specifications, and application notes, interested parties are encouraged to consult the datasheet and support materials provided by ON Semiconductor for the ESD9L5.0ST5G component.
