ON Semiconductor FAN3223TMPX Dual High-Speed Low-Side Gate Driver

The FAN3223TMPX from ON Semiconductor is a high-performance dual non-inverting low-side gate driver designed to drive N-channel MOSFETs or IGBTs. This device is capable of delivering peak current pulses of up to 4A, making it an excellent choice for fast switching applications such as DC-DC converters, motor controllers, and power management systems.

Key Features:

• High Peak Output Current: Capable of driving up to 4A, the FAN3223TMPX provides the necessary current to switch power devices efficiently.
• Wide Supply Voltage Range: The device operates over a supply voltage range of 4.5V to 18V, accommodating a variety of power systems.
• High-Speed Operation: With fast rise and fall times of 13ns and 10ns respectively, it is well-suited for high-frequency applications.
• Independent Input Pins: Each channel has an independent input pin, allowing for greater flexibility in control schemes.
• Robust Output Drive: Features robust drive capability with matched propagation delays for both channels, ensuring consistent performance.
• Thermal Shutdown: Integrated thermal shutdown feature protects the device from overheating, enhancing system reliability.

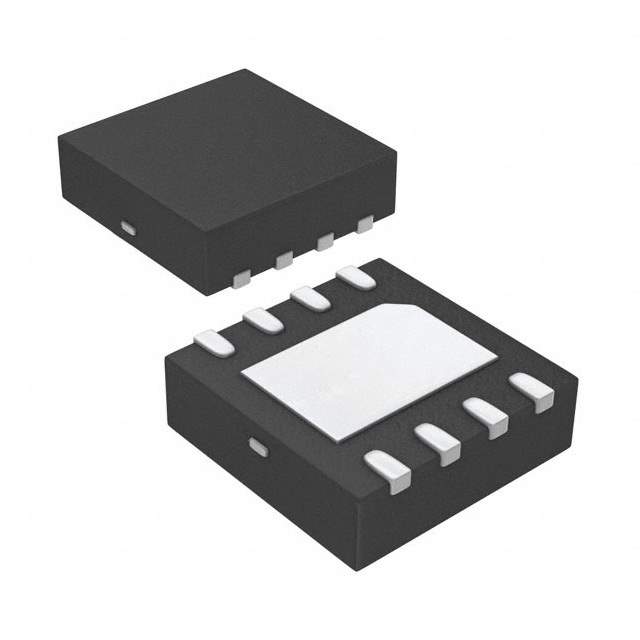

• Industry-Standard Packaging: The FAN3223TMPX comes in a compact 8-pin MSOP package, which is suitable for space-constrained applications.

Applications:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Motor Control Circuits
• Power Management Systems
• Class D Amplifiers
• Other High-Frequency Switching Applications

The ON Semiconductor FAN3223TMPX dual gate driver combines high-speed performance with efficiency and reliability, making it an optimal solution for designers looking to optimize their power systems. With its robust feature set and flexible operation, it stands out as a top choice for driving power MOSFETs and IGBTs in a wide range of electronic applications.
