ON Semiconductor FAN3225TMPX Dual High-Speed, Low-Side Gate Driver

The ON Semiconductor FAN3225TMPX is a high-performance, dual non-inverting low-side gate driver designed to drive N-channel enhancement-mode power MOSFETs and IGBTs with high speed and efficiency. This component is a perfect solution for a wide range of applications, including switching power supplies, DC-DC converters, motor control systems, and other power-switching applications.

With its capability to provide high peak current outputs up to 4 A per channel, the FAN3225TMPX ensures robust and reliable operation even under demanding conditions. Its fast propagation delays and short rise and fall times reduce transition losses and improve the overall efficiency of the power-switching system.

The FAN3225TMPX is designed with advanced features such as matched propagation delay times, which provide improved timing control and help to minimize the dead-time between the two channels. This is particularly beneficial in applications that require precise timing to avoid cross-conduction and to optimize switching performance.

The device operates over a wide supply voltage range from 4.5 V to 18 V, making it versatile for various system architectures. Additionally, it includes under-voltage lockout (UVLO) protection on both the high-side and low-side drivers to ensure that the gate driver operates only when the supply voltage is sufficient to maintain proper functionality.

For enhanced system reliability, the FAN3225TMPX incorporates input hysteresis, which provides noise immunity and prevents false triggering. Its robust design also features a 3.3 V and 5 V compatible logic input, thermal shutdown, and a lead-free finish, which makes it compliant with RoHS regulations.

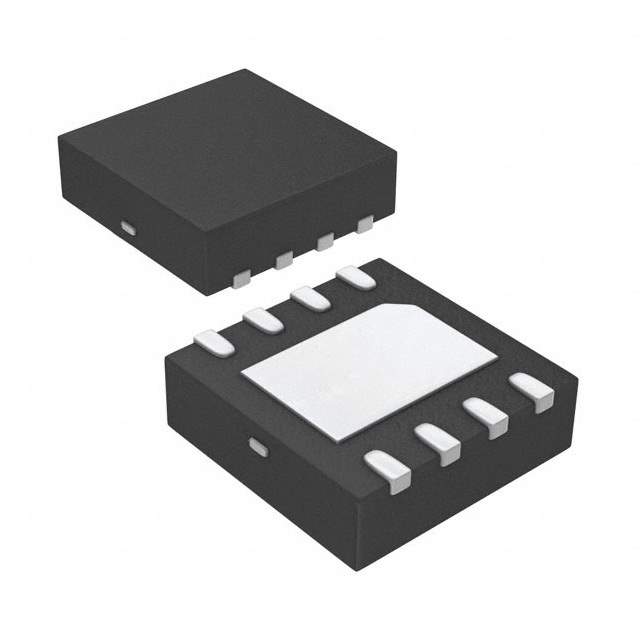

The FAN3225TMPX is available in a compact 8-pin SOIC package, which is suitable for space-constrained applications. Its industry-standard pinout makes it easy to integrate into existing designs or for use in new projects where space and performance are critical considerations.

Overall, the ON Semiconductor FAN3225TMPX gate driver is an excellent choice for designers looking to enhance their power management systems with a reliable, high-speed, and efficient solution.
