Introducing the FFSH50120A Silicon Carbide Schottky Diode

The FFSH50120A is a cutting-edge Silicon Carbide (SiC) Schottky diode crafted by ON Semiconductor, a leader in power and signal management. This high-performance diode is specifically designed for applications requiring efficient, reliable high-voltage switching. With its remarkable features, the FFSH50120A is an ideal choice for a range of power electronics applications.

Key Features

• High Voltage Capability: The FFSH50120A boasts a 1200V blocking voltage, making it suitable for high-voltage power systems.
• Low Forward Voltage Drop: The Schottky diode offers a low forward voltage drop, which enhances system efficiency by minimizing conduction losses.
• Zero Reverse Recovery Time: With its zero reverse recovery characteristics, the diode ensures reduced switching losses and improved thermal performance, leading to more efficient operation at high frequencies.
• High Surge Capacity: The device is capable of handling high surge currents, providing robust performance during transient conditions.
• Temperature Resilient: The FFSH50120A operates effectively over a wide temperature range, ensuring reliability in various environmental conditions.

Applications

The FFSH50120A is versatile and can be used in numerous applications, including but not limited to:

• Power supply units
• Solar inverters
• Power factor correction circuits
• Electric vehicle charging systems
• Motor drives
• High-frequency power converters

Technical Specifications

Here are some of the technical specifications that make the FFSH50120A stand out:

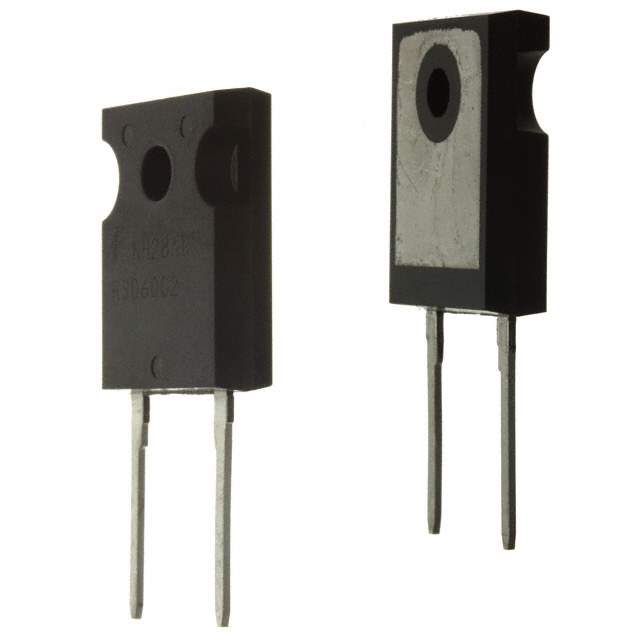

• Package: TO-247-2
• Maximum Continuous Forward Current: 50 A
• Maximum Operating Junction Temperature: 175°C

Conclusion

The FFSH50120A from ON Semiconductor represents a significant advancement in SiC Schottky diode technology. Its high-voltage capability, efficiency, and robustness make it an excellent choice for designers looking to improve the performance and reliability of their power conversion systems. Whether you are working on renewable energy solutions or developing the latest power electronics, the FFSH50120A brings the performance and durability needed to power the future.
