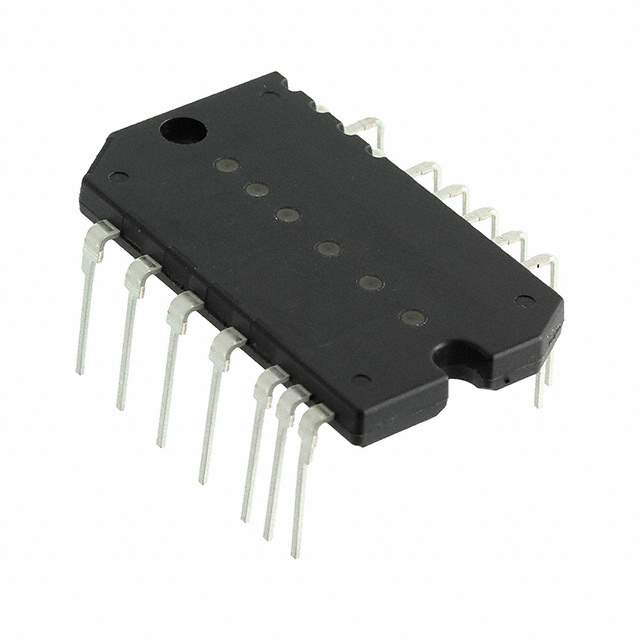

Introducing the FNB51060TD1 Intelligent Power Module from ON Semiconductor

The FNB51060TD1 is a cutting-edge Intelligent Power Module (IPM) designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This module is part of the Motion SPM® 5 Series, and it is engineered to provide a compact, high-performance solution for advanced motor drive applications such as those found in air conditioners, washing machines, refrigerators, fans, and other home appliances.

Key Features and Benefits

• Integrated Design: The FNB51060TD1 integrates power semiconductors, gate drivers, and protection circuitry into a single, compact package. This integration simplifies design, reduces external component count, and minimizes board space requirements.
• Advanced IGBT Technology: Utilizing ON Semiconductor's proprietary IGBT technology, the module offers low conduction and switching losses, which translates to improved efficiency and thermal performance in motor control applications.
• Optimized for Motor Control: With a 600V-10A rating, the module is optimized for three-phase inverter motor control systems, providing reliable and efficient power conversion.
• Built-in Protection Features: The FNB51060TD1 comes with a suite of protection features, including under-voltage lockout, over-current shutdown, and thermal shutdown, ensuring safe operation under adverse conditions.
• Isolated Package: The module is housed in an isolated backside-cooled package, which enhances thermal management and allows for simpler heat sink designs.
• Flexible Interface: It offers a flexible interface that is compatible with various microcontrollers, making it easier to integrate into existing designs.

Applications

The versatility of the FNB51060TD1 IPM makes it suitable for a wide range of applications. It is particularly well-suited for:

• Home appliance motor control
• Fan and pump control
• General-purpose three-phase inverter applications

Why Choose the FNB51060TD1?

Choosing the FNB51060TD1 from ON Semiconductor means selecting a product that delivers high efficiency, reliability, and ease of use. Its integrated design reduces time-to-market for product development, and its robust protection features ensure long-term reliability. Whether you're designing a new motor control system or upgrading an existing one, the FNB51060TD1 provides a sophisticated solution that engineers can trust.

For more information, datasheets, and support resources, visit ON Semiconductor's official website or contact their sales and support team.
