The ON Semiconductor FSA2258L10X is a versatile, high-performance dual Single Pole Double Throw (SPDT) analog switch that is ideal for a wide range of applications. This component is designed to operate from a single power supply ranging from 1.65V to 5.5V, making it suitable for battery-powered devices and low-voltage systems.

Key Features:

• Low Power Consumption: The FSA2258L10X is optimized for low-power operation, which helps extend battery life in portable applications.
• Wide Operating Voltage Range: With an operating voltage range of 1.65V to 5.5V, it is compatible with various logic levels and can be used in mixed-voltage environments.
• High Bandwidth: The switch offers a high bandwidth (>300 MHz), allowing it to handle a broad spectrum of signals with minimal signal distortion.
• Low On-Resistance: It features low on-resistance (typically 0.5 Ohms), which ensures minimal signal loss and heat generation when the switch is in the ON state.
• Break-Before-Make Switching: The FSA2258L10X provides break-before-make switching functionality, which prevents shorting of signals during the transition between two channels.
• ESD Protection: The device includes integrated Electrostatic Discharge (ESD) protection circuitry, safeguarding it against damage from static electricity.

Applications:

The FSA2258L10X is suitable for a variety of applications that require efficient routing of analog or digital signals. These include:

• Mobile Phones
• PDAs and Handheld Devices
• Portable Media Players
• Audio and Video Signal Routing
• Data Acquisition Systems
• Communication Systems

Package and Quality:

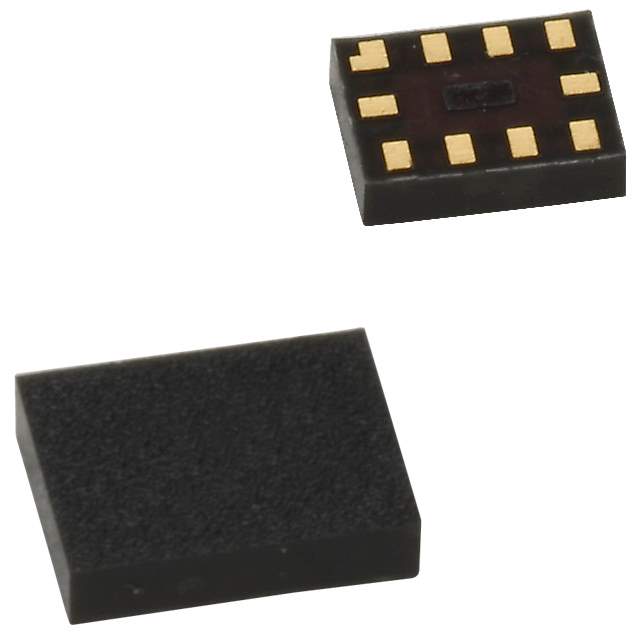

This analog switch is available in a compact MicroPak™ package, which saves valuable board space in space-constrained applications. ON Semiconductor is committed to high-quality standards, and the FSA2258L10X is no exception, ensuring reliable performance in your electronic designs.
