The ISL9V5045S3ST-F085 is a state-of-the-art ignition insulated-gate bipolar transistor (IGBT) from ON Semiconductor, designed to provide efficient and reliable performance for automotive ignition systems. This N-channel IGBT is part of the EcoSPARK® 2 family, which is known for its robustness and energy efficiency, making it an ideal choice for modern high-performance vehicles.

With a 500V collector-emitter voltage (Vce) and a collector current rating of 290 mA, the ISL9V5045S3ST-F085 is capable of handling the demanding requirements of automotive ignition applications. Its 450mJ of clamped inductive load energy ensures it can withstand the energy pulses typical in ignition coils without performance degradation.

The device features a low on-state voltage drop (Vce(sat)) which enhances its energy efficiency, leading to reduced power loss and improved fuel economy. The IGBT's fast switching speed is another key attribute, contributing to a more precise ignition timing, which in turn helps to optimize engine performance and reduce emissions.

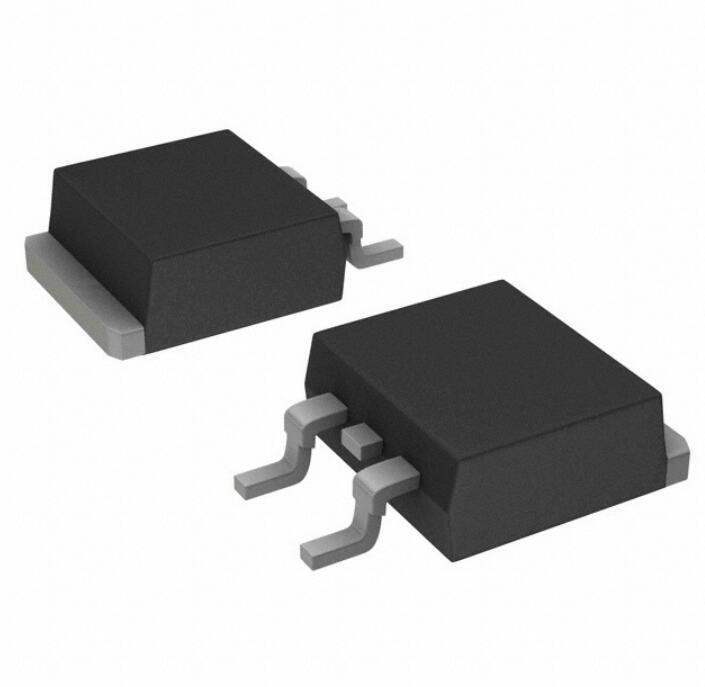

ON Semiconductor has engineered the ISL9V5045S3ST-F085 with advanced technologies that enhance its ruggedness and reliability. It includes a robust and reliable design that is resistant to the harsh conditions found in automotive environments, such as high temperatures and voltage transients. Its surface mount D2PAK (TO-263) package allows for efficient heat dissipation and compact design, facilitating easier integration into a wide range of automotive ignition systems.

Overall, the ISL9V5045S3ST-F085 offers automotive designers a powerful and efficient IGBT solution that meets the stringent requirements of modern vehicle ignition systems. With its combination of high energy handling capability, fast switching speed, and energy-efficient operation, this ON Semiconductor product is a top choice for manufacturers looking to enhance the performance and reliability of their automotive applications.
