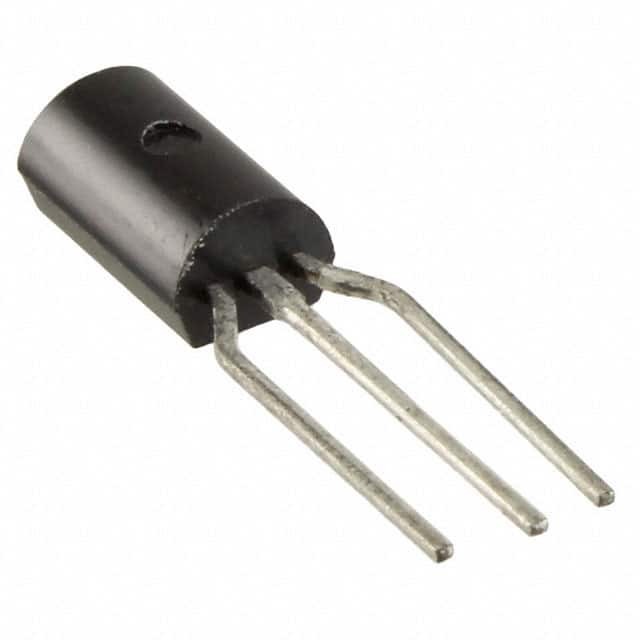

The ON Semiconductor KSC2330ASHBU is a high-performance NPN transistor that offers excellent amplification and switching characteristics. This transistor is designed for use in a wide range of applications, including audio amplifiers, power management systems, and switching circuits. Its robust design and manufacturing process ensure reliability and consistency in performance.

Key Features

• High Current Capacity: The KSC2330ASHBU is capable of handling high current levels, making it suitable for power-intensive applications.
• Low Saturation Voltage: This feature allows for efficient operation, especially in switching applications where power dissipation needs to be minimized.
• Fast Switching Speed: The fast response time of the KSC2330ASHBU makes it an ideal choice for high-speed switching applications.
• Complementary PNP Type: ON Semiconductor offers a complementary PNP type transistor, allowing for easy implementation in push-pull amplifier designs.

Electrical Characteristics

With a collector-emitter voltage (Vce) of 300V and collector current (Ic) of 1.5A, the KSC2330ASHBU can handle moderately high power levels. The device also features a transition frequency (fT) of 30MHz, which ensures good performance in high-frequency applications. The low collector-emitter saturation voltage (Vce(sat)) helps to reduce power losses and improve efficiency.

Applications

• Audio Power Amplifiers
• Power Supply Regulators
• DC-DC Converters
• Motor Control Circuits
• Switching Power Supplies

The KSC2330ASHBU from ON Semiconductor is a versatile NPN transistor that offers a blend of performance, efficiency, and reliability. Whether you're designing an audio amplifier or a complex power management system, this transistor can help you achieve a high-performance end product.
