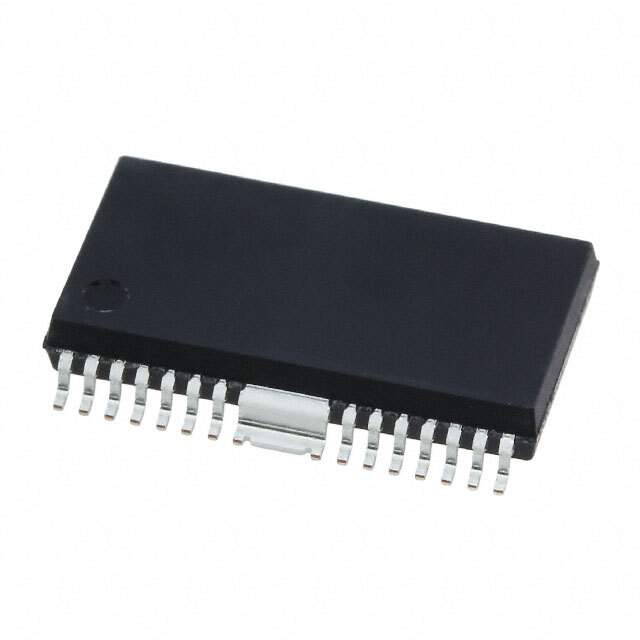

The LA6242H-TE-L-E from ON Semiconductor is a high-performance motor driver integrated circuit designed for the precise control of DC motors. It is particularly suitable for applications requiring efficient motor control such as in office automation machines, home appliances, and audio-visual equipment.

Key Features

• Output Current: The device can handle a substantial output current, making it ideal for driving small to medium-sized motors.
• Operating Voltage Range: With a wide operating voltage range, this motor driver is flexible and can be used in various applications with different power requirements.
• Low Saturation Voltage: The LA6242H-TE-L-E has a low saturation voltage, which helps in reducing power loss and improving efficiency during operation.
• Built-in Flywheel Diodes: The inclusion of flywheel diodes provides protection against inductive voltage spikes, which are common when driving motors.
• Multiple Operational Modes: It supports various operational modes, including forward, reverse, brake, and standby, allowing for comprehensive control over the motor's movement.

Applications

The LA6242H-TE-L-E is versatile and can be used in a variety of applications where precise motor control is required. Some typical applications include:

• Office automation equipment such as printers, copiers, and scanners
• Home appliances like washing machines, air conditioners, and refrigerators
• Audio-visual equipment including DVD players and projectors

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the LA6242H-TE-L-E is no exception. It is built to meet high standards of reliability and performance, ensuring long-lasting operation in a wide range of environmental conditions.

Environmental Considerations

The LA6242H-TE-L-E is designed with environmental considerations in mind, compliant with RoHS directives, making it a suitable choice for eco-friendly applications and contributing to the global effort of reducing hazardous substances in electronic products.
