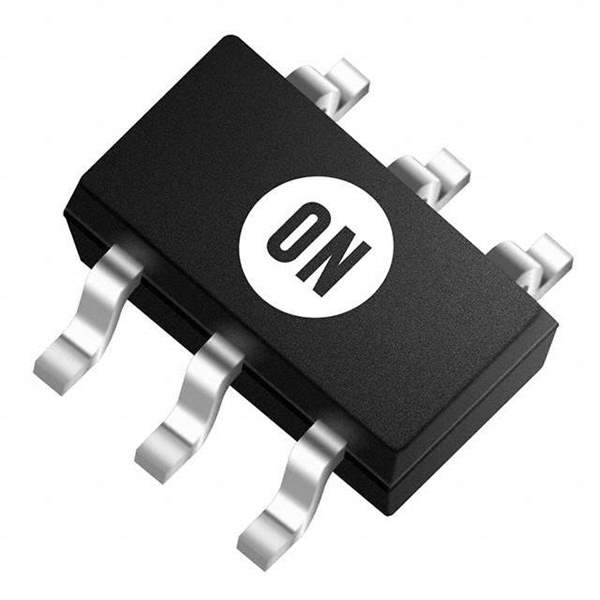

ON Semiconductor MBT3946DW1T1 - Dual General Purpose Transistor

The ON Semiconductor MBT3946DW1T1 is a versatile and high-performance dual general purpose transistor that is designed to cater to a wide array of electronic applications. This device is a testament to ON Semiconductor's commitment to providing innovative solutions that enhance energy efficiency and power management.

This product is configured in a compact SOT-363 package, which makes it suitable for space-constrained applications. It features two transistors in a single package, which can significantly reduce the board space required. The dual configuration also simplifies circuit design and enhances reliability by reducing component count.

The MBT3946DW1T1 transistor operates with a collector-emitter voltage (VCEO) of 40V, collector current (IC) of 200mA, and a power dissipation of 225mW. The device offers excellent current gain characteristics with a minimum hFE of 100 at 10mA VCE, ensuring high efficiency in amplification applications. Its low collector-emitter saturation voltage helps to minimize voltage drops and improve power efficiency.

This ON Semiconductor product is designed for general-purpose amplifier and switching applications. It is commonly used in consumer electronics, industrial control systems, and telecommunications equipment, among other electronic systems. The MBT3946DW1T1 is well-suited for applications that require a combination of high-speed switching and amplification, such as signal processing, power management, and motor control circuits.

The device's robust construction ensures reliable performance in a broad range of operating conditions. It is also characterized by its low on-state resistance, which contributes to its low power consumption and excellent thermal performance. With its superior specifications and dual-transistor design, the MBT3946DW1T1 from ON Semiconductor is an ideal choice for designers looking for a compact, efficient, and reliable general-purpose transistor solution.
