ON Semiconductor MC14050BDTR2G Product Overview

The MC14050BDTR2G from ON Semiconductor is a high-performance CMOS logic buffer and converter integrated circuit designed to meet a wide range of digital applications. This versatile component is part of the 4000 series logic family, known for its robustness and compatibility with a variety of digital systems.

Key Features

• Hex Buffer: The device contains six independent buffer gates, offering flexibility in various circuit configurations.
• Logic Level Conversion: It is capable of converting TTL logic levels to CMOS logic levels, making it ideal for interfacing between different logic families.
• High Voltage Tolerance: The MC14050BDTR2G can operate with a supply voltage ranging from 3V to 18V, accommodating a wide array of digital electronics requirements.
• Low Power Consumption: As a CMOS device, it boasts low power dissipation, which is crucial for battery-operated and energy-sensitive applications.
• High Noise Immunity: The buffer is designed with a high noise immunity level, ensuring reliable performance in electrically noisy environments.
• Wide Operating Temperature: It can operate over a temperature range of -55°C to +125°C, suitable for industrial and automotive applications.

Applications

The MC14050BDTR2G is a versatile component that can be used in a variety of applications, including:

• Logic level translation in mixed-voltage systems
• Input/Output buffering for microcontrollers
• Signal amplification and conditioning
• Drive high input impedance circuits
• Memory address buffering
• Acting as a line driver to extend digital signals over longer distances

Package and Quality

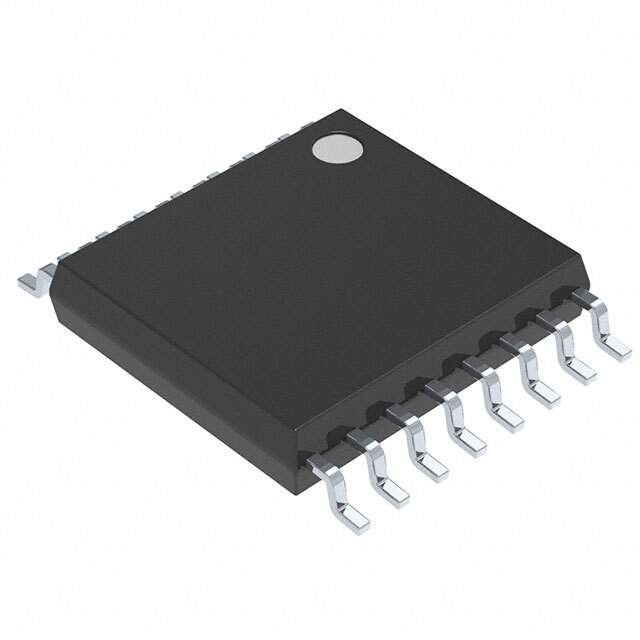

This device is offered in a TSSOP-16 package, providing a compact footprint for space-constrained applications. The MC14050BDTR2G is also lead-free and RoHS compliant, reflecting ON Semiconductor's commitment to environmental sustainability. Additionally, it is qualified for automotive applications, ensuring rigorous quality standards and reliability.

With its combination of high functionality, reliability, and compatibility, the ON Semiconductor MC14050BDTR2G is an excellent choice for designers looking for a dependable logic buffer and level converter.
