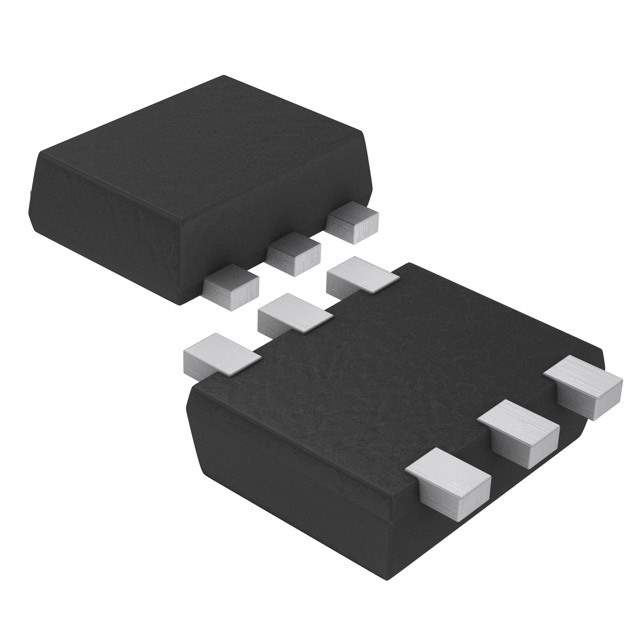

MCH6337-TL-H

Part No MCH6337-TL-H
Manufacturer ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description P-Channel Power MOSFET
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Part Status Obsolete(EOL)
Channel Type Type P
Technology MOSFET
Drain Source Voltage 20V
Current - Continuous Drain (Id) @ 25°C 4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate Charge (Qg) (Maximum) @ Vgs 7.3nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 670pF @ 10V
Vgs (Maximum) ±10V
Power Dissipation (Maximum) 1.5W (Ta)
Rds On (Maximum) @ Id, Vgs 49 mOhm @ 3A, 4.5V
Operating Temperature Range 150°C (TJ)
Mounting SMD
Manufacturer Package 6-MCPH
Package 6-SMD, Flat Leads
Win Source Part Number 1220718-MCH6337-TL-H
Manufacturer Homepage www.onsemi.com
Popularity Medium
Supply and Demand Status Balance
Family Name MCH6337
Introduction Date January 28, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Win Source Part Number RTL030P02;  RTL030P02TR;   IRLMS6802PbF;

Description

The MCH6337-TL-H is a sophisticated power MOSFET component designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This high-performance transistor is specifically engineered to address the stringent requirements of modern electronic applications, offering a blend of low on-resistance, high-speed switching, and reliability.

Key Features

  • Low On-Resistance: The MOSFET features an ultra-low on-resistance, which significantly reduces conduction losses and improves overall efficiency, making it ideal for power management applications.
  • High-Speed Switching: With its ability to switch at high speeds, the MCH6337-TL-H is suitable for high-frequency circuits, contributing to better performance in applications such as DC-DC converters, motor drives, and power supplies.
  • Advanced Technology: Utilizing ON Semiconductor's cutting-edge technology, this MOSFET offers enhanced thermal performance and higher reliability, which is crucial for demanding operating conditions.
  • Compact Design: The MOSFET comes in a small flat lead package that not only saves space but also aids in achieving a more compact overall design for the end product.
  • RoHS Compliant: Adhering to environmental standards, the MCH6337-TL-H is RoHS compliant, minimizing the ecological footprint by avoiding the use of hazardous substances.

Applications

The ON Semiconductor MCH6337-TL-H power MOSFET is versatile and can be used in a wide range of applications. It is particularly well-suited for:

  • Power Management Systems
  • DC-DC Converters
  • Switch Mode Power Supplies (SMPS)
  • Motor Control Circuits
  • Computing and Server Systems
  • Battery Powered Devices

With its excellent performance characteristics, the MCH6337-TL-H is an ideal choice for designers looking to enhance efficiency, reduce power consumption, and miniaturize their power control circuits. ON Semiconductor's commitment to quality ensures that this MOSFET will deliver reliable and consistent performance across a variety of electronic applications.
