ON Semiconductor MCH6601-TL-E Power MOSFET

The MCH6601-TL-E is a high-performance power MOSFET from ON Semiconductor, designed for a variety of applications requiring efficient power management and high-speed switching. This device is a part of the MOSFET portfolio that offers designers a balance between low on-resistance and cost-effectiveness, without compromising on quality and reliability.

Key Features

• Low On-Resistance: The MCH6601-TL-E boasts an incredibly low on-resistance, which minimizes conduction losses and improves overall efficiency in power circuits.
• High-Speed Switching: With its fast switching capabilities, this MOSFET is well-suited for high-frequency applications, contributing to better performance in power conversion and regulation tasks.

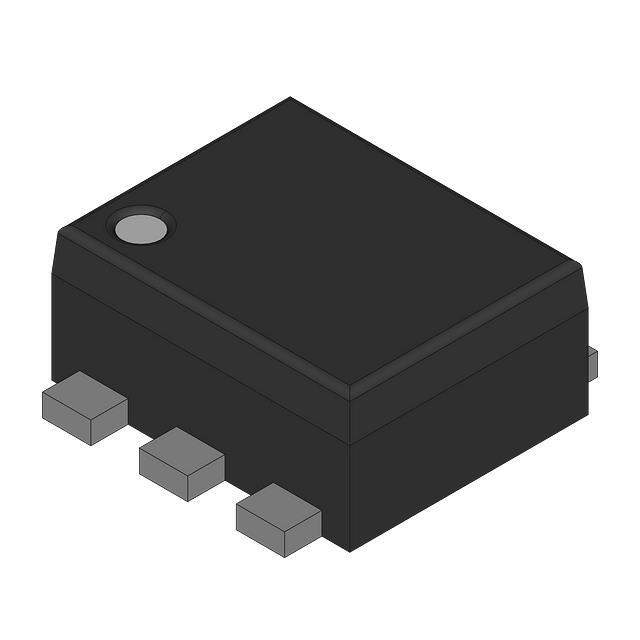

• Compact Design: Housed in a small and surface-mountable package, the MCH6601-TL-E is ideal for space-constrained applications, allowing for more compact and integrated designs.
• High Reliability: Manufactured by ON Semiconductor, a leader in the semiconductor industry, this MOSFET is built to meet high-quality standards, ensuring long-term reliability for critical applications.
• Low Gate Charge: The device features a low gate charge, which reduces the energy required to turn the MOSFET on and off, thus conserving power and reducing heat generation.

Applications

The MCH6601-TL-E is versatile and can be used in a wide range of applications, including:

• Power management modules
• DC-DC converters
• Motor control circuits
• Switching regulators
• Battery-powered devices
• LED lighting systems

Technical Specifications

Some of the core technical specifications of the MCH6601-TL-E include a drain-to-source voltage (Vdss) of 30V, a continuous drain current (Id) of 6A, and a power dissipation (Pd) of 1.25W. It operates within a junction temperature range of -55°C to 150°C, making it suitable for use in harsh environments.

In summary, the MCH6601-TL-E from ON Semiconductor is a robust and efficient solution for designers who require a power MOSFET that delivers both high performance and reliability in a compact form factor.
