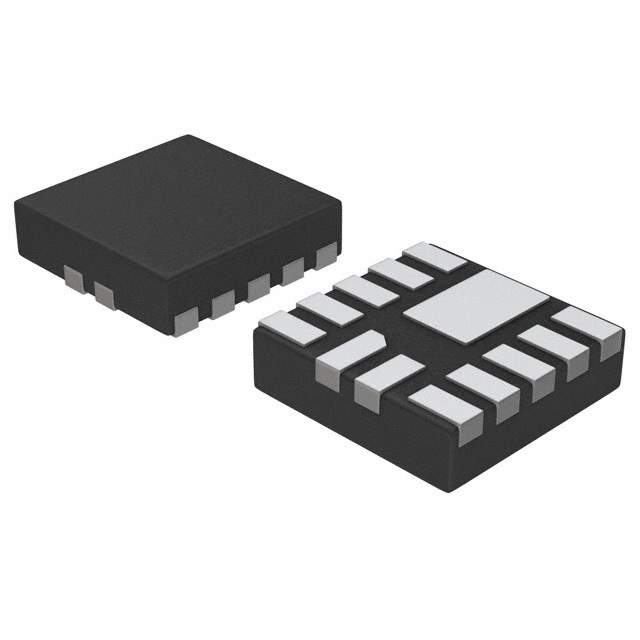

ON Semiconductor NCP5602MUTBG LED Driver

The NCP5602MUTBG is a compact, high-efficiency LED driver designed by ON Semiconductor, tailored for driving a string of LEDs with consistent current. This component is well-suited for portable devices due to its small footprint and power-saving features. It is commonly used in applications such as backlighting for LCD displays, keypad lighting for mobile devices, and other general illumination purposes in consumer electronics.

Key Features

• Output Current Regulation: The device ensures a precise constant current output, which can be programmed via an external resistor to suit various LED configurations and brightness requirements.
• High Efficiency: With an efficiency rate that can reach up to 87%, the NCP5602MUTBG minimizes power loss and helps extend battery life in portable applications.
• Small Package: Housed in a compact 12-bump micro-lead frame package (uDFN), it occupies minimal board space, making it ideal for space-constrained designs.
• Dimming Capability: The device supports both analog and digital dimming control, providing flexibility in adjusting LED brightness levels to accommodate user preferences or power-saving modes.
• Wide Input Voltage Range: It operates over a broad input voltage range from 2.7V to 5.5V, compatible with a variety of power sources from single-cell lithium-ion batteries to regulated 5V supplies.
• Thermal Shutdown Protection: The NCP5602MUTBG is equipped with thermal shutdown protection to prevent damage from overheating, enhancing the reliability and longevity of the device.
• Low Profile: The ultra-thin profile of the uDFN package allows for integration into slim designs, crucial for modern portable and wearable technology.

Applications

The versatility of the NCP5602MUTBG LED driver makes it an excellent choice for a variety of lighting applications. Its performance and small size make it particularly well-suited for:

• Smartphone and tablet backlighting
• Portable gaming device illumination
• LED-based decorative and accent lighting
• Wearable technology with display or indicator lighting

In conclusion, the NCP5602MUTBG from ON Semiconductor is a feature-rich, efficient solution for driving LEDs in compact electronic devices. Its programmable current regulation, high efficiency, and small form factor make it a top choice for designers looking to enhance the visual appeal and functionality of their products while maintaining energy efficiency.
