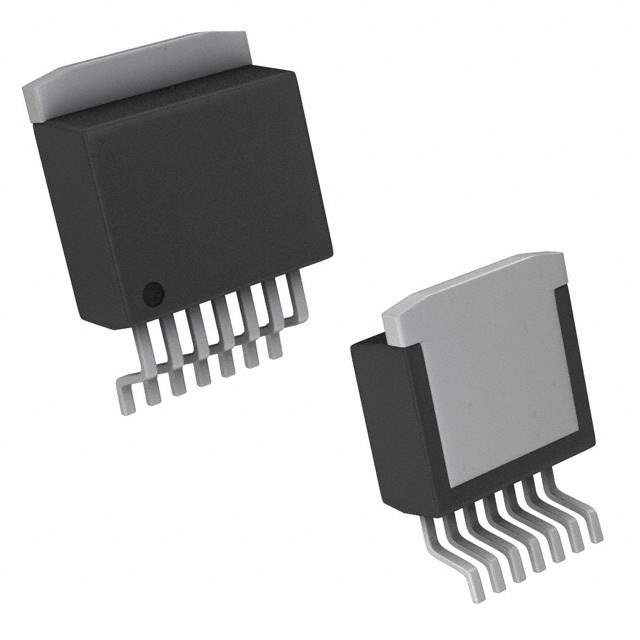

ON Semiconductor NCV8506D2T33R4G Voltage Regulator

The ON Semiconductor NCV8506D2T33R4G is a high-performance, low-dropout (LDO) linear voltage regulator designed to deliver a stable and reliable power supply. This device is particularly suitable for automotive applications, as it is AEC-Q100 qualified and features robust operational characteristics that meet the stringent requirements of the automotive industry.

Key Features

• Output Voltage: The NCV8506D2T33R4G provides a fixed output voltage of 3.3V, which is ideal for powering sensitive electronic components that require a precise voltage level.
• High Output Current: Capable of supplying up to 150mA of output current, this regulator can support a wide range of applications, from microcontrollers to sensors and other low-power devices.
• Low Dropout Voltage: With a low dropout voltage, this LDO ensures efficient operation even when the input voltage is close to the output voltage, minimizing power loss and heat generation.
• Thermal Protection: The device includes an over-temperature shutdown feature, safeguarding the regulator and the system it powers from damage due to excessive heat.
• Current Limiting: Built-in current limit protection prevents damage to the regulator and the load in the event of a fault condition or an overload situation.
• Wide Operating Temperature Range: The NCV8506D2T33R4G operates over a broad temperature range from -40°C to 125°C, ensuring reliable performance in a variety of environments.

Applications

The NCV8506D2T33R4G is versatile and can be used in various automotive applications, including:

• Infotainment Systems
• Instrument Clusters
• Body Control Modules
• Advanced Driver Assistance Systems (ADAS)

Its robust design also makes it suitable for other high-reliability applications that require a regulated 3.3V supply, such as portable electronics, power management circuits, and industrial controls.

Package and Availability

The device is offered in a small surface-mount package, D2PAK, which is designed for optimal thermal performance and space-saving on the PCB. The NCV8506D2T33R4G's compact form factor, combined with its high reliability, makes it an excellent choice for designers looking for an efficient and durable voltage regulator solution.
