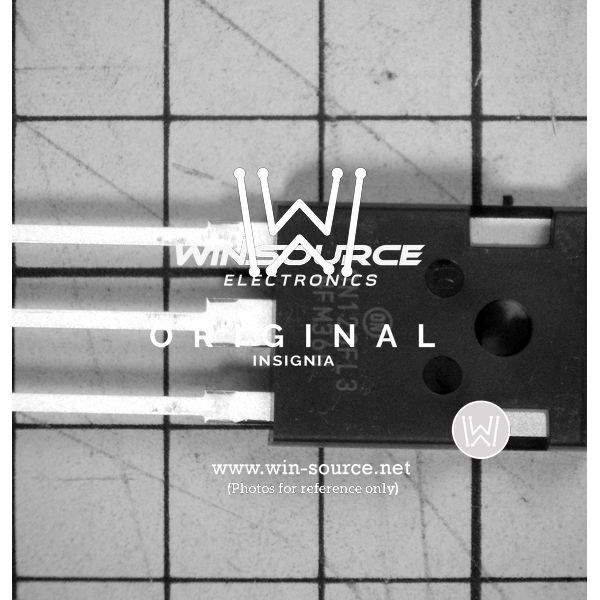

ON Semiconductor NGTB40N120FL3WG IGBT

The NGTB40N120FL3WG is a high-performance insulated gate bipolar transistor (IGBT) designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This IGBT is engineered to deliver superior efficiency, reliability, and thermal performance, making it an ideal choice for a wide range of power electronics applications.

The device features a robust and advanced trench gate field-stop technology that offers an optimal balance between conduction and switching losses, providing an exceptional efficiency profile. This technology enables the IGBT to operate at a lower on-state voltage drop (V<sub>CE(on)) and reduced energy losses during switching, which translates to improved overall system performance and energy savings.

With a collector-emitter voltage (V<sub>CE) rating of 1200V and a continuous collector current (I<sub>C) rating of 40A at 25°C, the NGTB40N120FL3WG can handle high power levels while maintaining stability and reliability. The IGBT's maximum operating junction temperature is specified at 175°C, which allows for a wider thermal margin in demanding conditions.

The device is housed in a TO-247 package, which is known for its excellent thermal characteristics and mechanical robustness. This package ensures efficient heat dissipation and easy integration into various circuit designs. Additionally, the NGTB40N120FL3WG features a co-packaged fast and soft recovery anti-parallel diode, which further enhances its performance by reducing recovery losses during high-speed switching operations.

Applications that can benefit from the NGTB40N120FL3WG IGBT include solar inverters, uninterruptible power supplies (UPS), motor drives, induction heating, and other power conversion systems that require high efficiency and reliability. ON Semiconductor's commitment to quality and performance is evident in this IGBT, making it a trustworthy component for engineers and designers seeking to optimize their power management solutions.

To ensure a successful integration, ON Semiconductor provides comprehensive technical support, including detailed datasheets, application notes, and simulation models for the NGTB40N120FL3WG. This support helps designers to fully understand the IGBT's characteristics and to design their systems for optimal performance.
