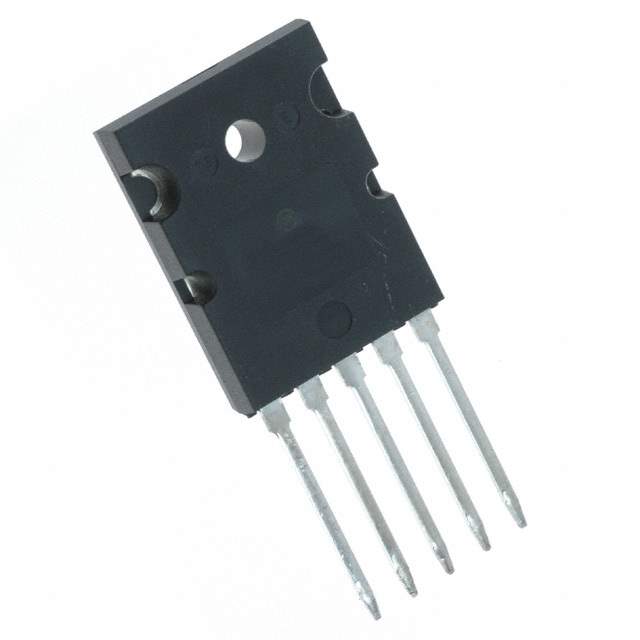

The NJL3281DG is a high-performance NPN Silicon Transistor designed and manufactured by the renowned ON Semiconductor. It is a crucial component in a wide range of electronic applications, particularly in power amplification and switching. The NJL3281DG is known for its high power and current handling capabilities, making it an ideal choice for audio power amplifiers and high-power switching circuits.

Key Features

• High Collector-Emitter Breakdown Voltage: With a collector-emitter breakdown voltage of 230V, the NJL3281DG can handle high voltage operations, which is essential for power applications.
• High Collector Current: The device supports a collector current up to 15A, allowing it to drive high current loads.
• Complementary PNP Type Available: The NJL3281DG has a complementary PNP type, NJL1302DG, providing flexibility in designing push-pull amplifier configurations.
• High Transition Frequency: It features a high transition frequency (fT) of 30MHz, which is beneficial for high-frequency applications.
• Excellent Safe Operating Area (SOA): The transistor has a well-defined Safe Operating Area, ensuring reliable operation under various conditions.

Applications

The NJL3281DG is suitable for a variety of applications, including:

• Audio Power Amplifiers
• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Linear Regulators
• General Purpose Switching

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The NJL3281DG is built with ON Semiconductor's advanced manufacturing processes, ensuring high reliability and performance. The product is designed to meet the rigorous demands of commercial and industrial electronic devices.

Environmental Compliance

The NJL3281DG complies with RoHS (Restriction of Hazardous Substances) directives, making it an environmentally friendly choice for manufacturers looking to create greener products.
