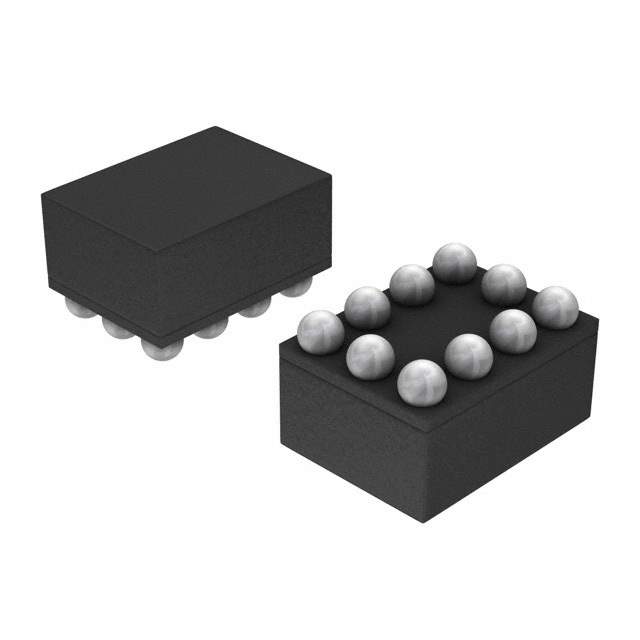

ON Semiconductor NLAS4685FCT1G Product Description

The NLAS4685FCT1G is a high-performance, low-voltage dual SPDT (Single Pole Double Throw) analog switch developed by ON Semiconductor. This switch is designed to provide efficient and reliable switching of analog signals with minimal power consumption, making it a suitable choice for a variety of applications including portable devices, data acquisition systems, and communication devices.

Key Features

• Low Voltage Operation: The NLAS4685FCT1G operates at a supply voltage range from 1.65V to 4.3V, accommodating the needs of low-voltage systems.
• High Bandwidth: The device offers a wide bandwidth, ensuring minimal signal distortion and allowing it to handle high-speed analog signals effectively.
• Low On-Resistance: With a low on-resistance (typically 5 ohms at 4.2V), the switch ensures minimal signal loss and reduces power consumption.
• Low Crosstalk: Engineered for minimal signal interference, the NLAS4685FCT1G provides low crosstalk between channels, which is critical for maintaining signal integrity.
• ESD Protection: The switch includes built-in ESD protection circuits, safeguarding the device against electrostatic discharges and enhancing its durability.
• Compact Packaging: Available in a space-saving UQFN package, the NLAS4685FCT1G is ideal for applications where board space is at a premium.

Applications

The NLAS4685FCT1G's versatile nature makes it well-suited for a diverse range of applications, including but not limited to:

• Cellular phones and PDAs
• Portable media players
• Signal routing in audio, video, and data systems
• Relay replacement
• Medical equipment

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the NLAS4685FCT1G is no exception. It is manufactured using industry-leading techniques and is subjected to rigorous testing to ensure it meets the high standards expected of ON Semiconductor products.

For designers and engineers looking for a reliable and efficient solution for their analog switching needs, the NLAS4685FCT1G from ON Semiconductor offers an excellent blend of performance, power efficiency, and compact form factor.
