ON Semiconductor NLX1G99DMUTWG: A Versatile Configurable Logic Gate Solution

The NLX1G99DMUTWG from ON Semiconductor is a multi-functional, configurable single-gate logic device that offers a high degree of flexibility in a compact package. This innovative product allows designers to implement a wide range of logical functions, making it an indispensable component for space-constrained applications that require a variety of logic operations.

Built on advanced silicon technology, the NLX1G99DMUTWG supports multiple logic functions including AND, OR, NAND, NOR, XOR, XNOR, inverter, and buffer. The configuration of the desired function is easily set by connecting the input pins in various combinations, thus eliminating the need for multiple different logic gates in a design. This can significantly reduce both the board space and the bill of materials in a variety of electronic systems.

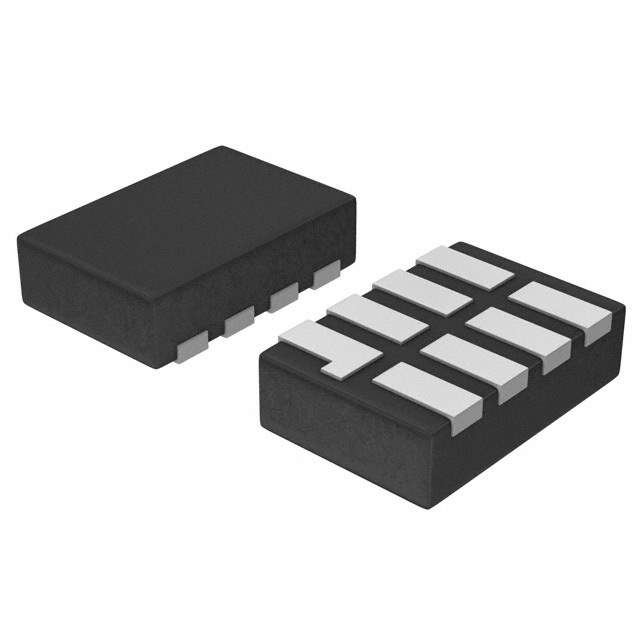

The device is housed in a micro-miniature, ultra-thin dual flat no-lead (UDFN) package with a 1.45mm x 1.0mm footprint and a nominal height of just 0.35mm. Its small size is particularly beneficial for portable and wearable technology where space is at a premium. Despite its diminutive stature, the NLX1G99DMUTWG does not compromise on performance, offering fast propagation delay and high noise immunity.

The NLX1G99DMUTWG operates over a wide voltage range from 1.65V to 5.5V, making it suitable for interfacing with both low-voltage and standard logic level circuits. This feature ensures compatibility with a broad array of existing and new designs, providing engineers with a versatile tool that can adapt to different system voltages.

Additionally, the device boasts low power consumption, which is critical for battery-operated devices. It also features Schmitt-trigger inputs that enhance noise immunity and allow for slow input transition signals, further increasing its robustness in demanding applications.

In summary, the NLX1G99DMUTWG from ON Semiconductor is a highly flexible, space-saving logic solution that supports multiple functions, ideal for a wide range of applications including consumer electronics, mobile devices, and industrial control systems. Its compact size, low power consumption, and ease of use make it a smart choice for designers looking to streamline their designs without sacrificing functionality or performance.
