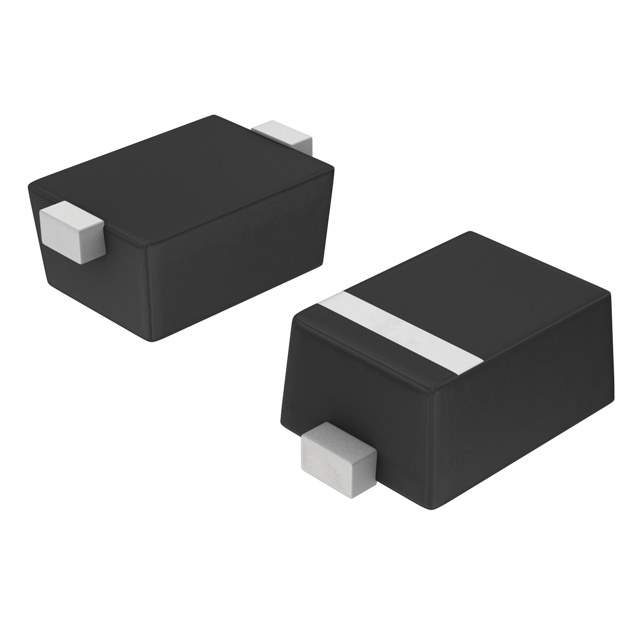

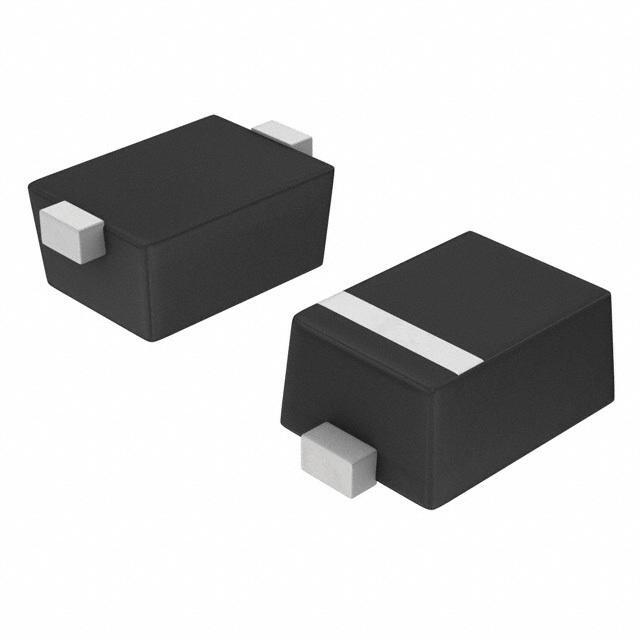

The NSR0620P2T5G from ON Semiconductor is a state-of-the-art Schottky Barrier Diode designed for high-efficiency applications requiring a low forward voltage drop and fast switching. This diode is optimized for use in a wide range of electronic devices, including power supply circuits, inverters, and as a freewheeling diode in consumer and industrial applications.

Key Features

• Low Forward Voltage Drop: The device features a very low forward voltage drop, which enhances system efficiency by reducing power loss during operation.
• Fast Switching Speed: With its fast switching capability, the NSR0620P2T5G minimizes switching losses and is ideal for high-frequency applications.
• Low Leakage Current: Its low leakage current ensures minimal power loss when the diode is in the off state, contributing to overall energy savings.
• High Current Capacity: This diode can handle a high forward surge current, making it suitable for applications that require robust performance during transient conditions.
• Small Package Size: The NSR0620P2T5G comes in a compact SOD-923 package, which is ideal for space-constrained applications.
• Lead-Free and RoHS Compliant: The product is environmentally friendly, adhering to the latest RoHS directives and is lead-free, making it suitable for use in green products.

Applications

The versatility of the NSR0620P2T5G Schottky Barrier Diode allows it to be used in a variety of applications, including:

• DC-DC converters
• Power management devices
• Reverse battery protection
• Load switch
• Step-down converters

Technical Specifications

Some of the key specifications of the NSR0620P2T5G include:

• Maximum Repetitive Reverse Voltage (V<sub>RRM): 20 V
• Forward Continuous Current (I<sub>F): 0.5 A
• Peak Forward Surge Current (I<sub>FSM): 5.5 A
• Operating Junction Temperature Range: -55°C to +125°C

In conclusion, the NSR0620P2T5G Schottky Barrier Diode from ON Semiconductor is a reliable and efficient solution for modern electronic applications requiring high-speed switching and low power loss. Its compact size and compliance with environmental standards make it a smart choice for designers looking to create eco-friendly and space-efficient products.
