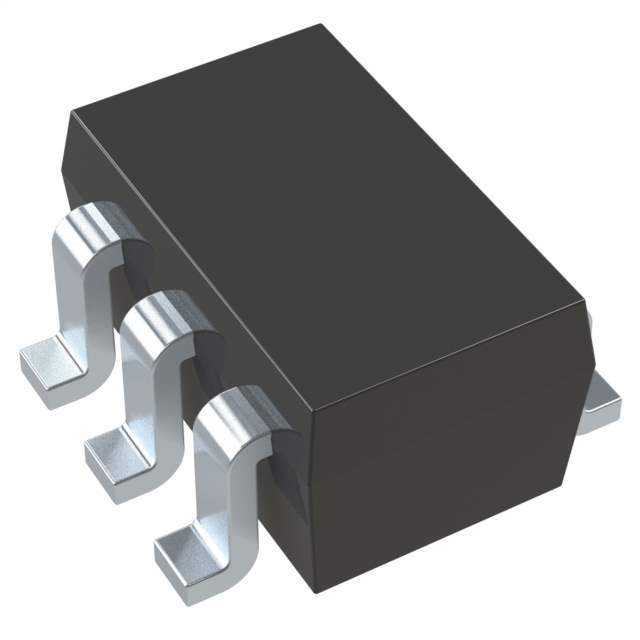

Same model may have multiple batches, images only for reference.
NSVBT2222ADW1T1G onsemi
Same model may have multiple batches, images only for reference.

NSVBT2222ADW1T1G

Part No NSVBT2222ADW1T1G
Manufacturer ON Semiconductor
Catalog Transistors (BJT) - Arrays
Description TRANS 2NPN 40V 0.6A SC88/SC70-6
Datasheet
NSVBT2222ADW1T1G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309062-NSVBT2222ADW1T1G
Category Discrete Semiconductor Products Transistors Bipolar (BJT) Bipolar Transistor Arrays
Manufacturer onsemi
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Transistor Type 2 NPN (Dual)
Current - Collector (Ic) (Max) 600mA
Voltage - Collector Emitter Breakdown (Max) 40V
Vce Saturation (Max) @ Ib, Ic 1V @ 50mA, 500mA
Current - Collector Cutoff (Max) 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 150mA, 10V
Ultra Librarian 3D Model Ultra Librarian NSVBT2222ADW1T1G CAD Model

Description

  • Moisture Sensitivity Level: 1
  • NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
  • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
