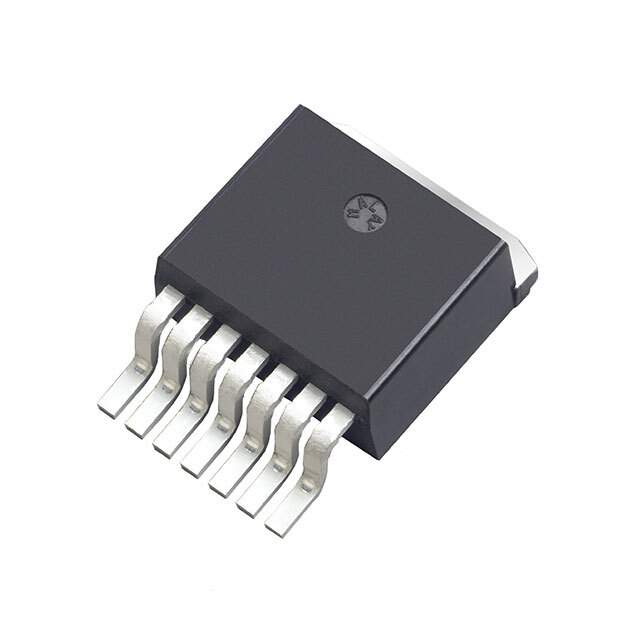

The NTBG020N120SC1 is a state-of-the-art Silicon Carbide (SiC) Power MOSFET presented by ON Semiconductor, a preeminent company in energy-efficient innovations. This MOSFET is a cutting-edge component designed for high-efficiency power conversion applications. The SiC technology provides superior switching performance and higher reliability compared to silicon-based devices.

Key Features

• High Blocking Voltage: With a drain-to-source voltage (V<sub>DS) of 1200V, this MOSFET can handle high voltage applications, making it ideal for electric vehicle chargers, solar inverters, and other energy conversion systems.
• Low On-Resistance: The NTBG020N120SC1 boasts an ultra-low on-resistance (R<sub>DS(on)) of just 20 mΩ, which significantly reduces conduction losses and improves overall efficiency.
• Fast Switching Speed: Enhanced switching speed reduces switching losses and allows for higher frequency operation, which can lead to smaller and more efficient power supply designs.
• Robustness: The inherent material properties of Silicon Carbide allow for high-temperature operation and excellent thermal performance, ensuring reliability under harsh conditions.
• Integrated Anti-Parallel Diode: An integrated body diode with low reverse recovery charge (Q<sub>rr) further enhances the performance during switching and reduces losses.

Applications

The NTBG020N120SC1 is designed for a wide range of applications where efficiency and power density are critical. Its applications include but are not limited to:

• Power supplies for servers, telecom, and industrial use
• Electric vehicle (EV) charging stations
• Photovoltaic (solar) inverters
• Uninterruptible power supplies (UPS)
• Energy storage systems
• Induction heating systems

Conclusion

ON Semiconductor's NTBG020N120SC1 Silicon Carbide Power MOSFET is an exemplary component for designers looking to enhance the performance and efficiency of their power conversion systems. With its superior electrical characteristics and robustness, it stands as a pivotal solution for a new era of energy-efficient applications.
