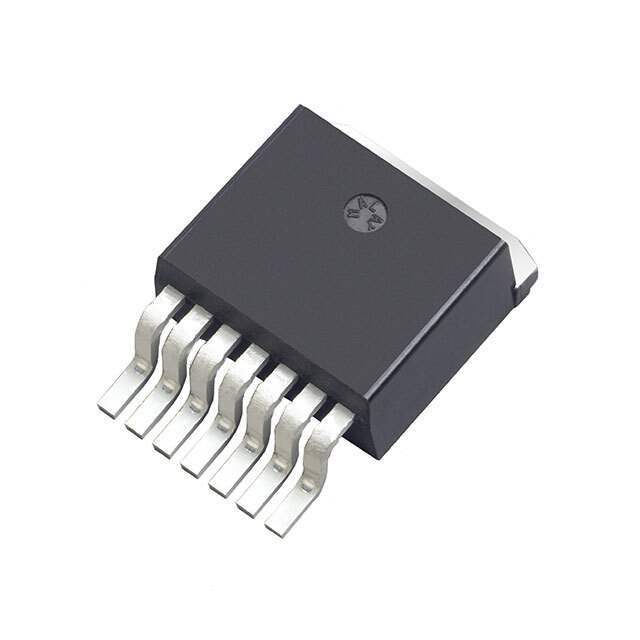

NTBG028N170M1

Part No NTBG028N170M1
Manufacturer ON Semiconductor
Catalog FETs - Single
Description SIC MOSFET 1700 V 28 MOHM M1 SER
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202269-NTBG028N170M1
Manufacturer onsemi
Category Discrete Semiconductor Products -Transistors -FETs, MOSFETs- Single FETs, MOSFETs
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1700 V
Current - Continuous Drain (Id) @ 25°C 71A (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount

Description

The NTBG028N170M1 is a state-of-the-art power MOSFET engineered by ON Semiconductor, a brand renowned for its innovative and reliable semiconductor solutions. Designed to meet the rigorous demands of today's high-performance power conversion applications, this MOSFET is ideal for a wide array of uses, including but not limited to, power supplies, motor drives, and automotive systems.

Key Features

  • Advanced Technology: This MOSFET utilizes ON Semiconductor's cutting-edge trench gate structure, which provides superior performance by minimizing on-state resistance and maximizing carrier mobility.
  • High Current Capability: With a continuous drain current (ID) rating of up to 28 A, the NTBG028N170M1 can handle high current loads, making it perfect for demanding applications.
  • High Voltage Threshold: The device can withstand drain-source voltages (VDS) up to 170 V, ensuring it can operate effectively in high-voltage environments.
  • Low RDS(on): A low on-resistance of typically just 28 mΩ at VGS = 10 V means that the MOSFET can operate with high efficiency, reducing power losses and improving overall system performance.
  • Enhanced Thermal Performance: The NTBG028N170M1 is encapsulated in a compact and thermally efficient DFN8 package, which aids in superior heat dissipation.
  • Robustness: The device is designed to be rugged, with a high tolerance for thermal and electrical stress, providing a reliable solution for tough industrial environments.

Applications

The NTBG028N170M1's versatility makes it suitable for a broad spectrum of applications, including:

  • Switch Mode Power Supplies (SMPS)
  • DC-DC Converters
  • Power Inverters
  • Motor Control Circuits
  • Automotive Electronics
  • LED Lighting Systems

Environmental and Quality Certifications

ON Semiconductor ensures that the NTBG028N170M1 meets rigorous environmental and quality standards, including RoHS compliance and lead-free construction, which makes it suitable for use in environmentally-sensitive applications.

With its exceptional performance characteristics and ON Semiconductor's commitment to quality, the NTBG028N170M1 is an exemplary choice for engineers and designers looking to enhance the efficiency and reliability of their power management systems.
