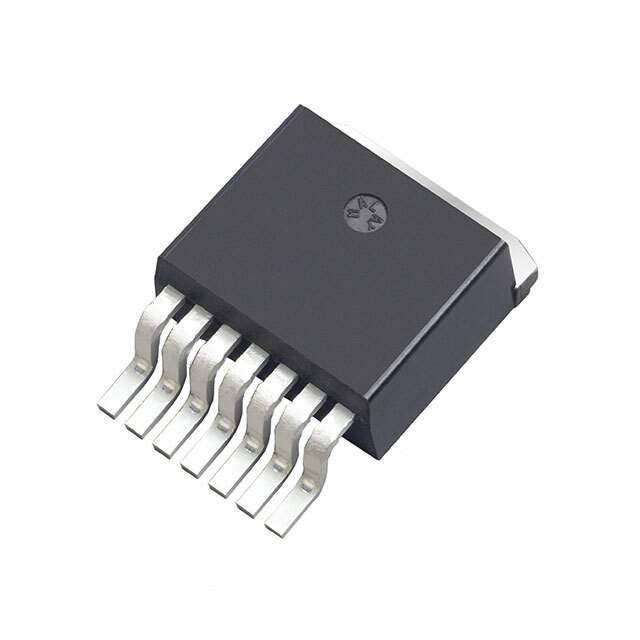

ON Semiconductor NTBG040N120SC1: A Robust SiC Power MOSFET

The NTBG040N120SC1 is a state-of-the-art Silicon Carbide (SiC) Power MOSFET designed by ON Semiconductor, a renowned leader in the semiconductor industry. This high-performance component is engineered to meet the demanding requirements of modern power conversion systems, making it an ideal choice for a wide range of applications, including electric vehicles, solar inverters, and industrial power supplies.

Featuring a maximum drain-source voltage (V<sub>DS) of 1200V, this MOSFET is capable of handling high voltage operations with ease. The device boasts a low on-resistance (R<sub>DS(on)) of just 40mΩ, which significantly reduces conduction losses and enhances overall system efficiency. Additionally, the NTBG040N120SC1 can support a continuous drain current (I<sub>D) of up to 31A at 25°C, making it suitable for high-power applications.

The SiC technology employed in the NTBG040N120SC1 offers superior thermal performance compared to traditional silicon devices. This allows for higher temperature operation and improved reliability. The device also features a low total gate charge (Q<sub>G), which translates into faster switching speeds and reduced switching losses, further enhancing the efficiency of the power system in which it is used.

ON Semiconductor has designed the NTBG040N120SC1 with ruggedness in mind. It is capable of withstanding high surge currents and features a robust body diode, which can handle high-speed switching and hard-switched applications without degradation. The MOSFET's package is also designed for excellent creepage and clearance distances, ensuring safe operation even under high-voltage conditions.

Overall, the NTBG040N120SC1 is a testament to ON Semiconductor's commitment to providing advanced power management solutions. Its exceptional performance characteristics make it a compelling choice for engineers and designers looking to push the boundaries of efficiency, reliability, and power density in their products.
