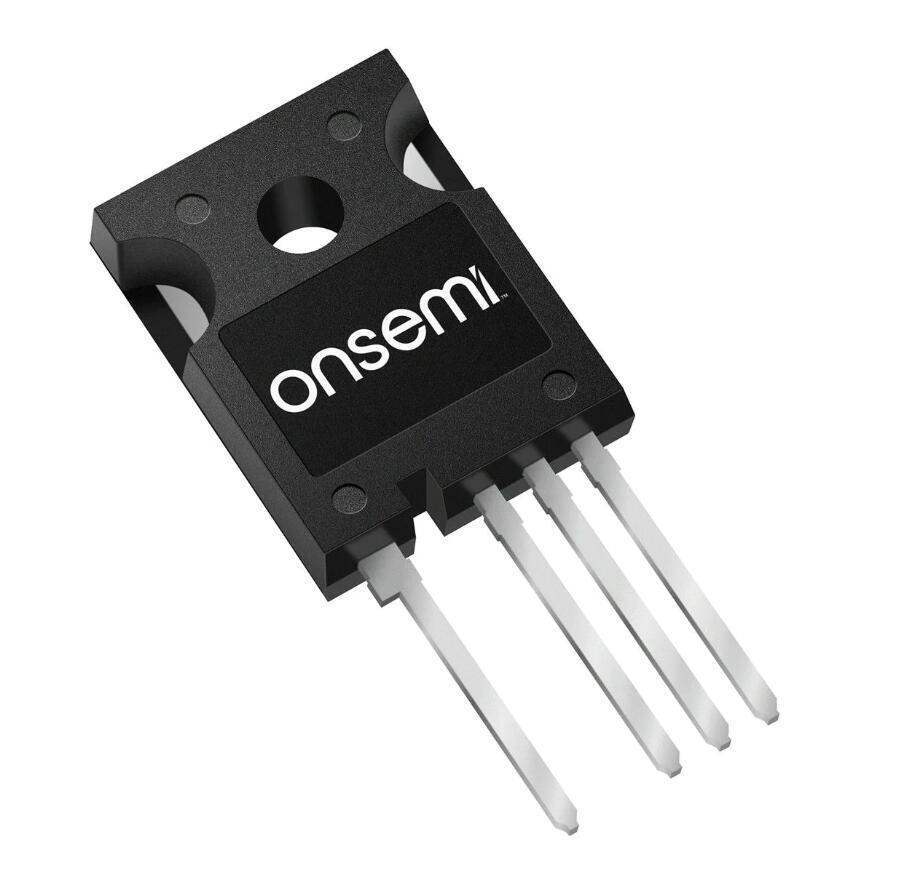

ON Semiconductor NTH4L014N120M3P: A High-Efficiency MOSFET

The ON Semiconductor NTH4L014N120M3P is a cutting-edge N-channel power MOSFET that offers an outstanding balance of efficiency and performance for a wide range of applications. This device is part of ON Semiconductor's high-performance MOSFET portfolio, designed to meet the rigorous demands of modern electronic circuits.

Key Features

• Low On-Resistance: The NTH4L014N120M3P boasts an extremely low on-resistance (R<sub>DS(on)), which significantly reduces conduction losses and enhances overall efficiency, making it an ideal choice for power-intensive applications.
• High Switching Speed: This MOSFET is engineered for high-speed switching applications. Its fast switching capabilities ensure minimal power loss and heat generation during operation.
• Enhanced Thermal Performance: With an optimized package design, the NTH4L014N120M3P offers superior thermal performance, ensuring reliability even under high-temperature operating conditions.
• Robust Gate Oxide: The device features a robust gate oxide that can withstand high voltage levels, offering improved reliability and a longer lifespan.
• High Current Capacity: It is capable of handling high currents, making it suitable for heavy-duty power applications.

Applications

The ON Semiconductor NTH4L014N120M3P is versatile and can be used in a myriad of applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Motor Control Circuits
• Power Management Solutions
• Automotive Electronics
• Renewable Energy Systems

Technical Specifications

The NTH4L014N120M3P operates with a drain-source voltage (V<sub>DS) of 120V, which is suitable for various mid to high-voltage applications. The continuous drain current (I<sub>D) is rated at a robust level, ensuring that the device can handle significant power throughput without degradation.

Quality and Environmental Compliance

ON Semiconductor is committed to providing environmentally friendly products. The NTH4L014N120M3P is compliant with RoHS and Halogen-Free standards, making it a responsible choice for manufacturers looking to create sustainable and eco-friendly products.

In summary, the NTH4L014N120M3P from ON Semiconductor is a high-performance, efficient, and reliable MOSFET that is well-suited for a range of power applications where efficiency and thermal management are critical.
