The ON Semiconductor NTK3139PT1G is a high-performance Power MOSFET designed for a variety of applications that require efficient power management and high-speed switching. This component is particularly suitable for portable electronics, where power efficiency is crucial to battery life and device performance.
Key Features
- Low On-Resistance: The NTK3139PT1G features a low on-resistance of typically 20 mΩ at 4.5V gate drive, which enhances its efficiency by minimizing power loss during operation.
- High-Speed Switching: This MOSFET is capable of high-speed switching, which is essential for applications like DC-DC converters where fast switching times can improve performance and reduce noise.
- Low Threshold Voltage: With a low threshold voltage, this MOSFET can be driven at lower gate voltages, making it compatible with logic-level circuits and easier to integrate with other low-voltage components.
- ESD Protection: The device includes built-in ESD protection, which safeguards the MOSFET against electrostatic discharges, ensuring a longer operational life and reliability in sensitive applications.

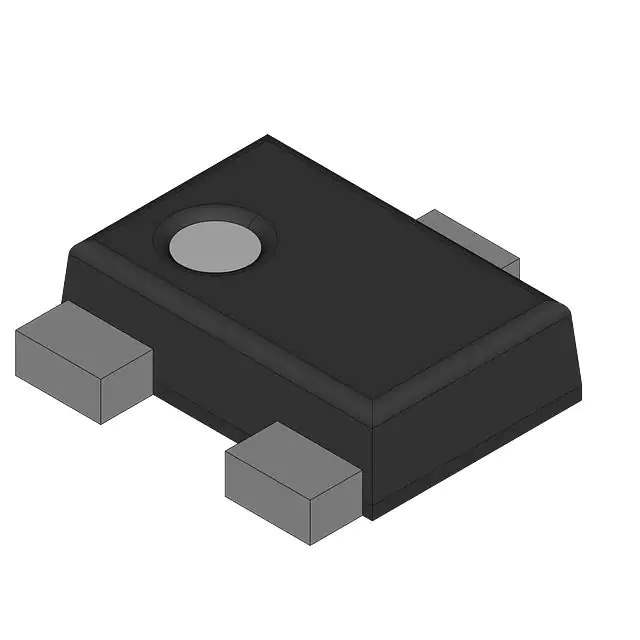

- SOT-23 Package: The compact SOT-23 package is ideal for space-constrained applications, and its small footprint allows for high-density mounting on PCBs.
Applications
The NTK3139PT1G is versatile and can be used in a wide range of electronic circuits. Some common applications include:
- Power Management in Portable Devices
- DC-DC Converters
- Battery Management Systems
- Load Switching
- Motor Control Circuits
Technical Specifications
Parameter
Value
Drain-to-Source Voltage (V<sub>DS)
20V
Continuous Drain Current (I<sub>D)
540 mA
Power Dissipation (P<sub>D)
300 mW
Operating Temperature Range
-55°C to +150°C
Overall, the ON Semiconductor NTK3139PT1G is a reliable and efficient solution for designers looking to optimize their power management systems with a component that offers high performance in a compact package.
